Dimmers

Order numbers

Logo Paladin

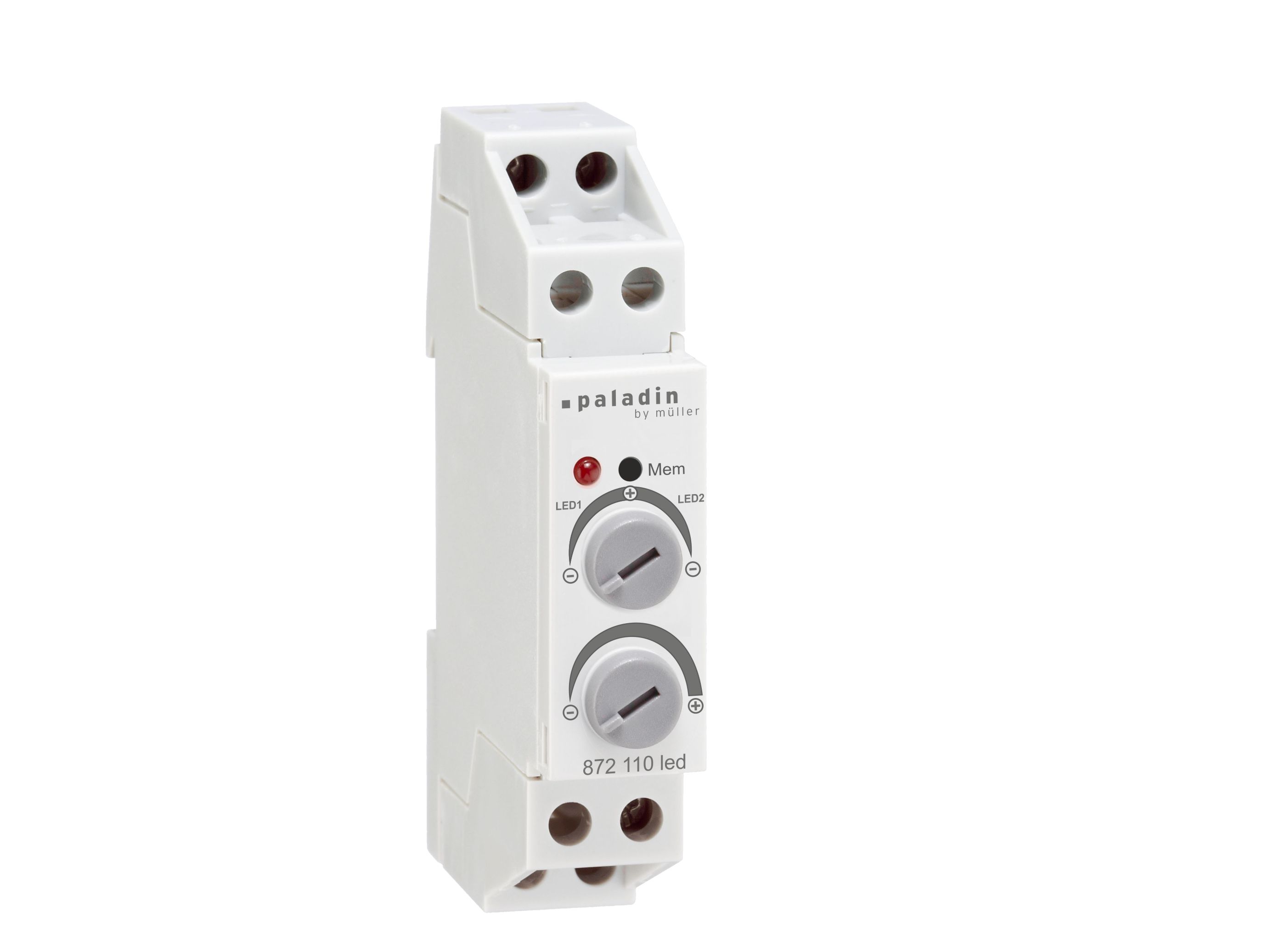

872 110 led
for LED/RLC/CFL with Master-Slave-function

paladin 872 110 led

Overview

  • LED-Dimmer (4 - 100 W) / Universal dimmer
  • DIN-rail mounting 17,5 mm
  • For pushbuttons
  • Suitable for dimmable LED, incandescent, halogen and fluorescent lamps
  • For leading or trailing edge dimming
  • Minimum dimming-value adjustable
  • Memoryfunction of the last dimming value
  • Master-Slave-function: With the inclusion of further dimmers higher loads can be controlled with one single pushbutton connection (Master)
  • Protection against overload, short circuit and overheat

Intended use

  • The device fits for the particular use of the following tasks: dimmer for the previously defined lamps.
  • Operate the device in a closed room only! The regulation of the brightness operates as described in the instruction manual.
  • The device is equipped with a overheat protection and short-circuit protection.
