Dimmers

Order numbers

Logo Paladin

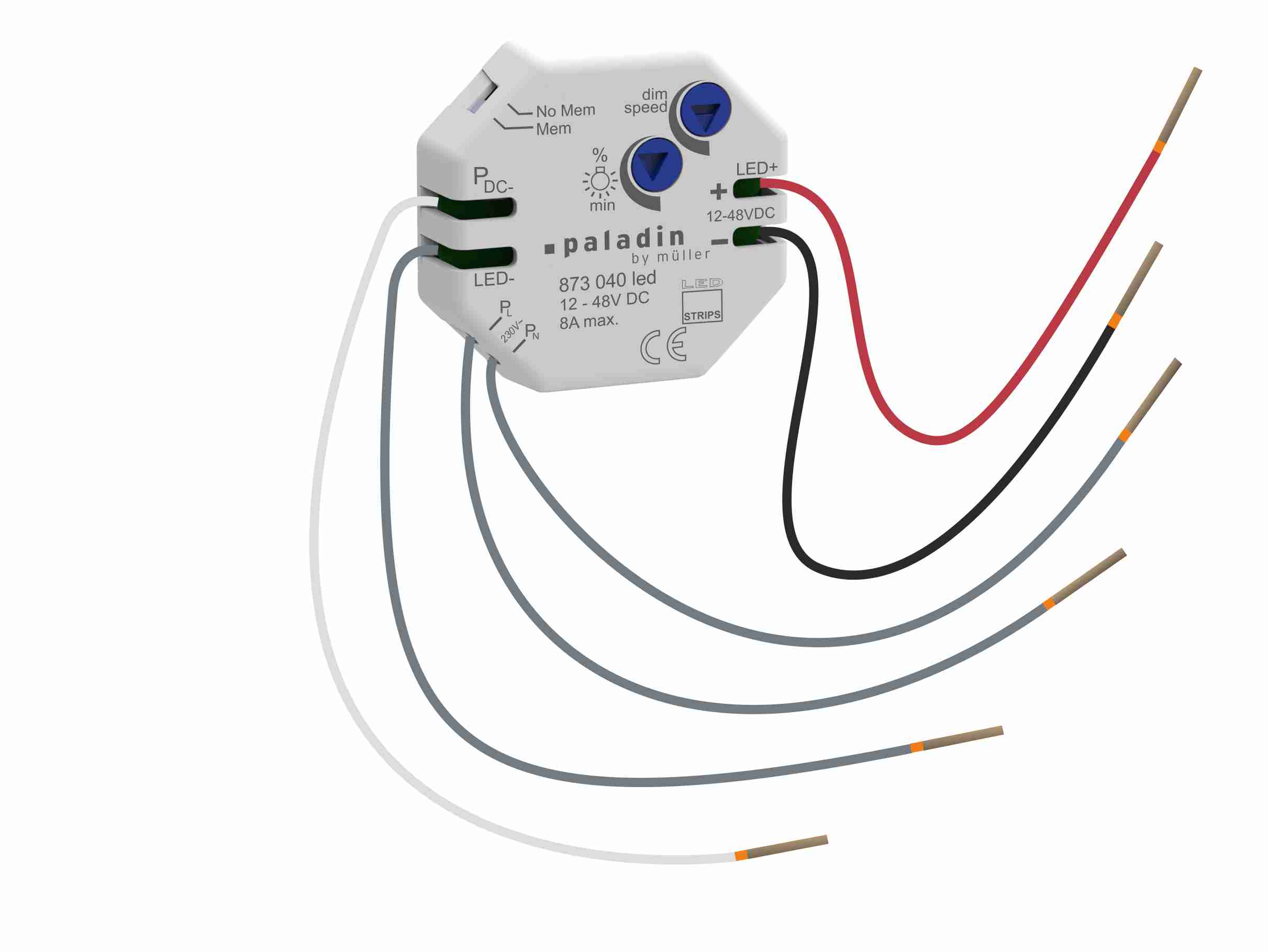

873 040 led
for LED strips

paladin 873 040 led

Overview

  • Dimmer for LED lamps 12 - 48 V DC up to 8 A, with Pulse Width Modulation technology (PWM), specially designed for 1-channel LED strips
  • Flush-mounted fitting
  • Minimum dimming-value adjustable
  • Dimming speed adjustable
  • For pushbuttons
  • Installation in standard boxes behind a pushbutton possible
  • Small design (13 mm)
  • Easy to connect
  • Memoryfunction of the last dimming value
  • Protection against overload, short circuit and overheat
  • Easy to connect (10 cm litz wires with ferrules)

Intended use

  • The device fits for the particular use of the following tasks: dimmer for the previously defined lamps.
  • Operate the device in a closed room only! The regulation of the brightness operates as described in the instruction manual.
  • The device is equipped with a overheat protection and short-circuit protection.
