Dimmers

Order numbers

Logo Paladin

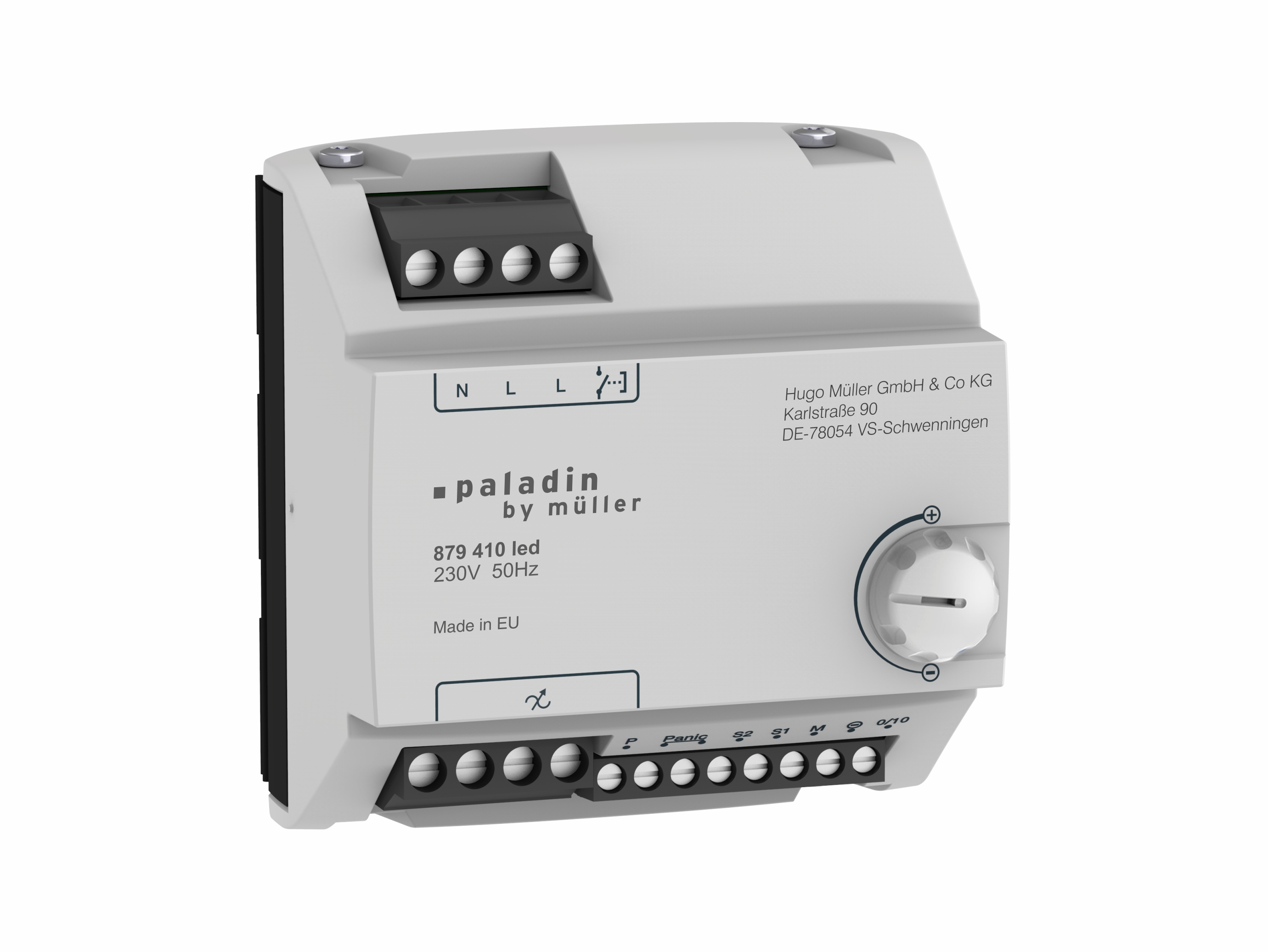

879 410 led
for dimmable LED loads

paladin 879 410 led

Overview

  • TRIAC Dimmer for dimmable LED lamps
  • up to 1.200 W peak load per dimmer
  • Minimum dimming-value adjustable
  • Master-Slave-function: With the inclusion of further dimmers higher loads can be controlled with one single pushbutton connection (Master)
  • Protection against overload, short circuit and overheat
  • Memoryfunction of the last dimming value
  • Panic function

Basic functions for a flexible usage:

  • Master-Slave Mode
  • Potentiometer (intern or extern)
  • Pushbutton operation (Memory or No Memory)
  • 0–10 V Signal

Intended use

  • The device fits for the particular use of the following tasks: dimmer for the previously defined lamps.
  • Operate the device in a closed room only! The regulation of the brightness operates as described in the instruction manual.
  • The device is equipped with a overheat protection and short-circuit protection.
