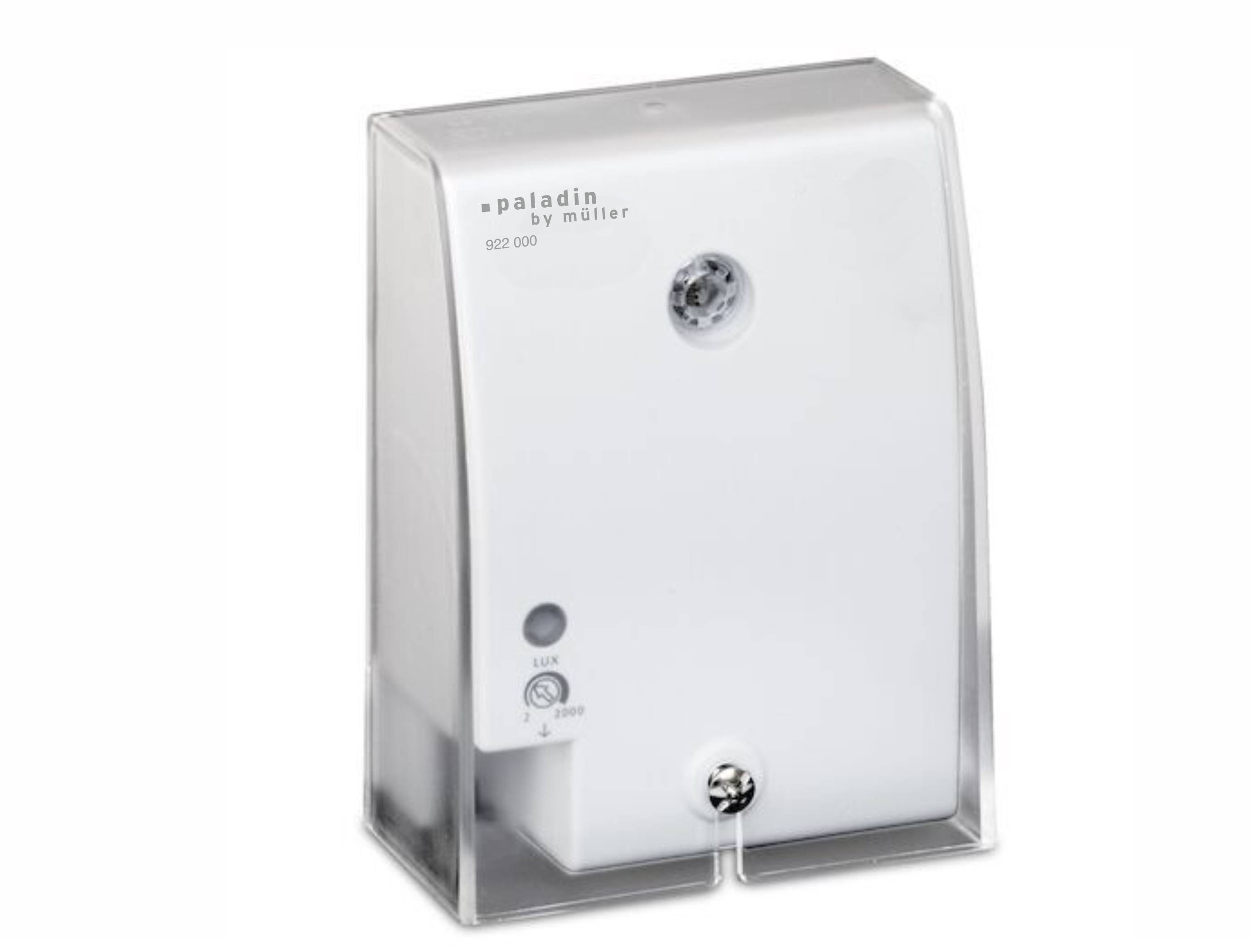

paladin 922 000

Overview

The device fits for the particular use of the following tasks: light control for streets, outdoor stairs, shop windows, buildings etc.
The installation must be in accordance with the instruction manual.
The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment.

	Voltage	EAN	Art. No.
922 000	230 V 50-60 Hz	4011732012663	01266

Supply voltages	230 V, 50–60 Hz
Power consumption	6 VA
Channel	Normally Open, 10 A 250 V AC
Switching capacity resistive load:: inductive load:	10 A / 250 V~ at cosϕ=1 2 A at cosϕ=0,6
Max. switching capacity	1.200 W
Filament Lamp, Halogen Lamp	1.200 W
Lux range	2–2.000 Lux
Switching delay	approx. 20...120 sek.
Permitted ambient temperature	–35…+60 °C
Type of protection	IP 54
Dimensions	111 x 83 x 43 mm
Mounting	Wall
Hysteresis	approx. 30 %
