Analogue time switches
Order numbers
VS 10.18
111 120
Day
without reserve
without reserve
VS 10.18
111 120
Day
without reserve
without reserve

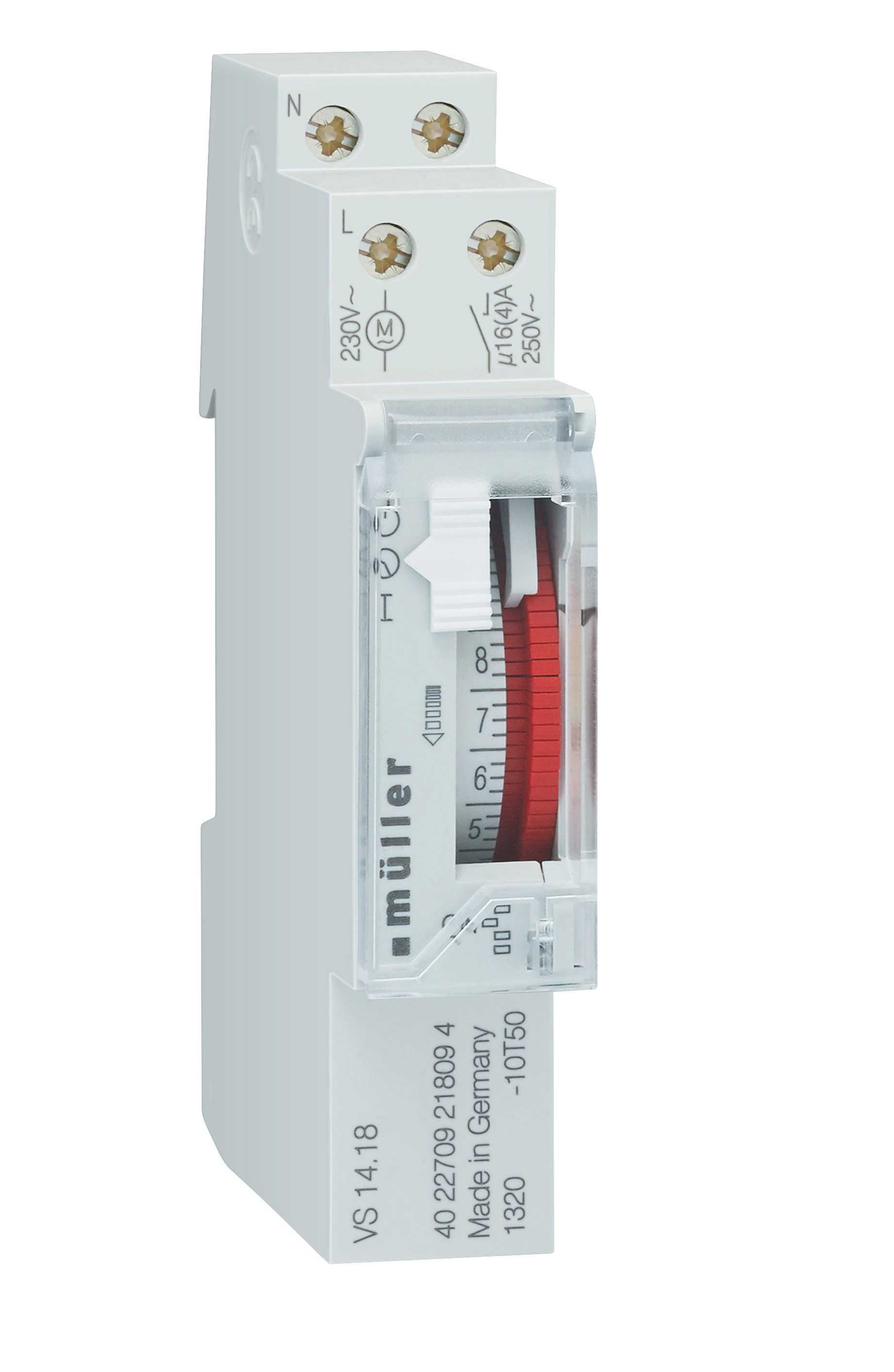

VS 14.18
114 120
Day
with reserve
with reserve

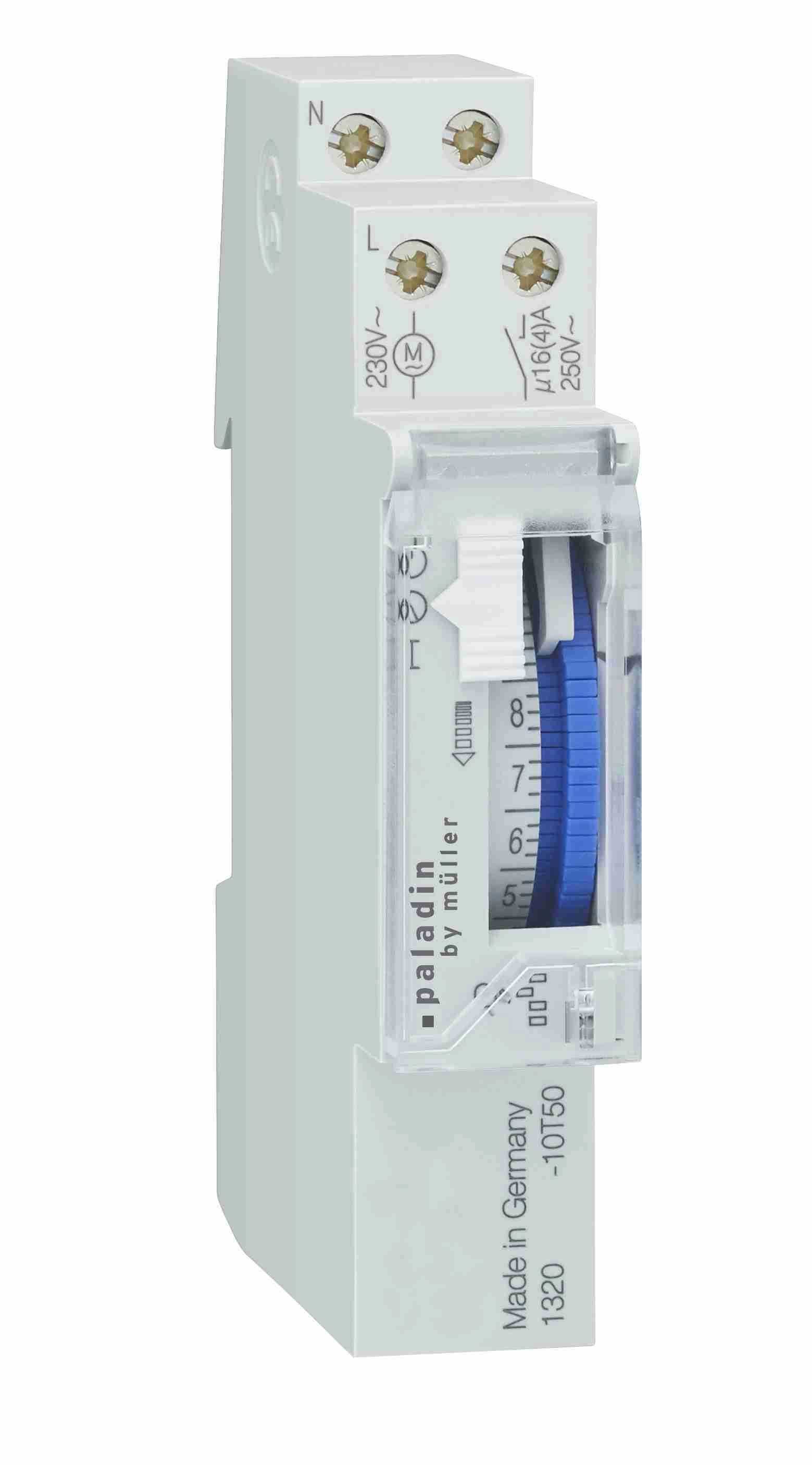

müller VS 1x.18 - paladin 11x 120
Overview
- Daily program
- Slim format 17,5 mm
- Captive setting keys
- Manual override switch Permanent ON / Permanent OFF / AUTO
Intended use
- The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
- Operate the device in a dry room only!
- The installation must be in accordance with the instruction manual.
- The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment.
Supply voltage versions
- 230 V, 50-60 Hz
- Other supply voltage versions on request
