Order numbers

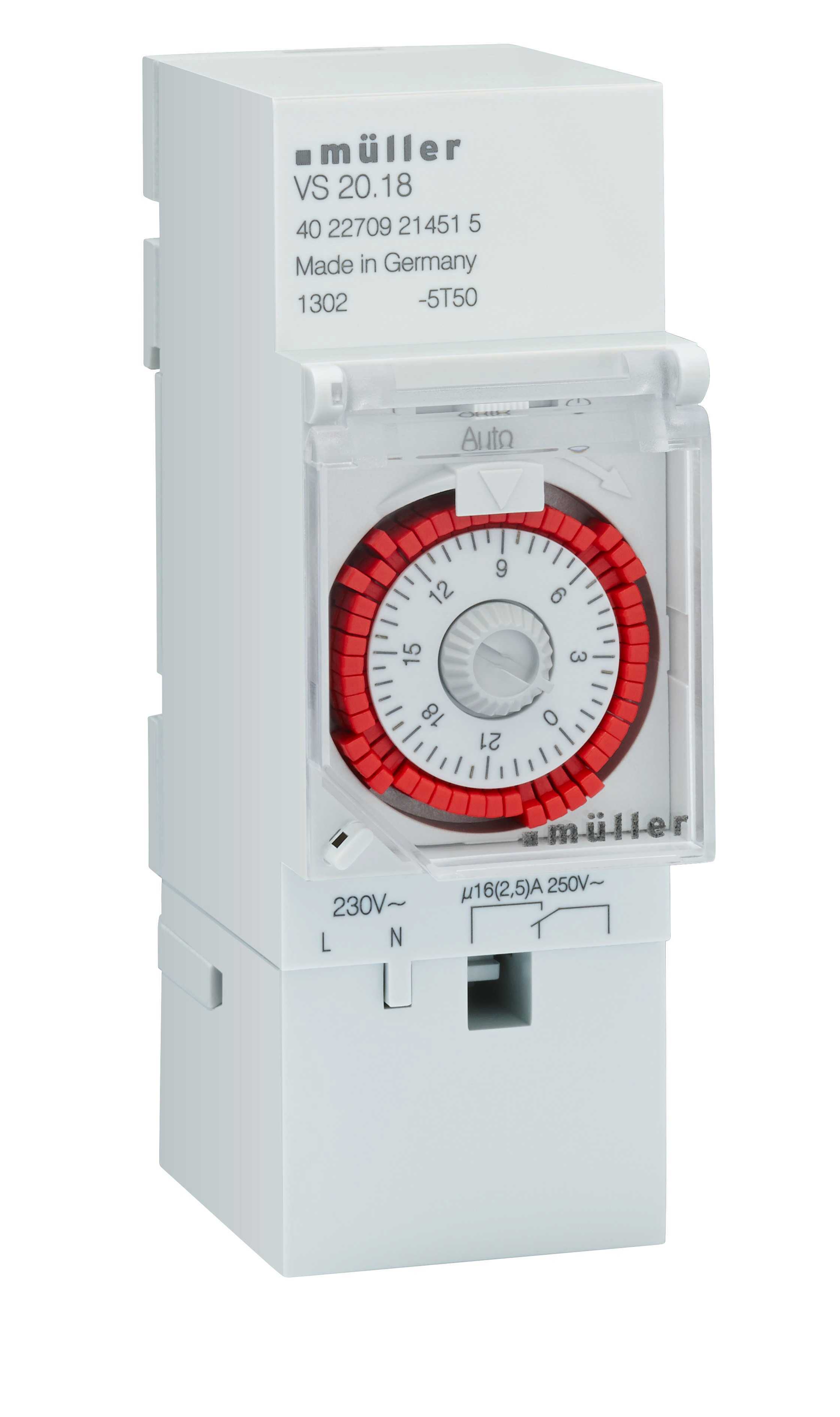

VS 20.18

151 220

Day
without reserve

VS 24.18

154 220

Day
with reserve

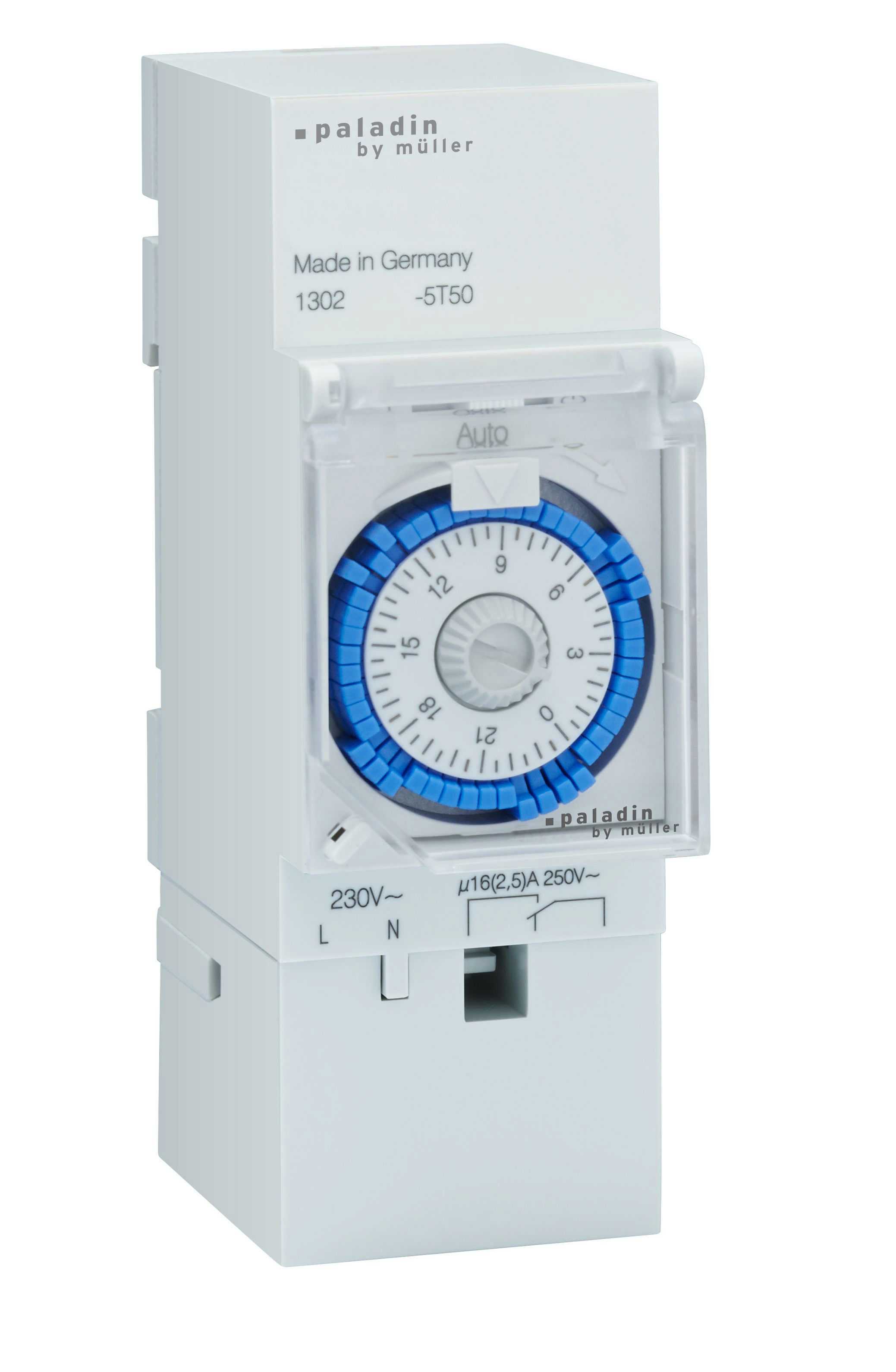

müller VS 2x.18 - paladin 15x 220

The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
Operate the device in a dry room only!
The installation must be in accordance with the instruction manual.
The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment.

	Voltage	EAN	Art. No.
VS 20.18	230 V 50-60 Hz	4022709214515	21451
VS 24.18	230 V 50-60 Hz	4022709218483	21848
151 120	230 V 50-60 Hz	4011732005191	00519
154 120	230 V 50-60 Hz	4011732005306	00530
Other supply voltage versions on request

Supply voltage	230 V, 50-60 Hz
Power consumption (real power)	0,4 W
Switch (potential-free)	Change-over, contact gap < 3mm (µ)
Manual override switch	Permanent ON / Permanent OFF / AUTO
Contact material	AgSnO₂
Switching capacity resistive load: inductive load:	16 A / 250 V~ at cosφ=1 8 A / 250 V~ at cosφ=0,6
Min. switching power	1.000 mW (10 V / 10 mA)
Filament Lamp, Halogen Lamp	2.000 W
Fluorescent Lamp uncopensated	1.000 W
Fluoresent Lamp series compensated	750 W
LED (230 V~) > 5 W / CFL	200 W
Minimum switching interval	30 Min.
Time base	Quartz
Accuracy (at 23 °C)	≤±1 Sec./day
Power back-up (at 20 °C)	approx. 100 h
Permitted ambient temperature	–5…+50 °C
Housing	self-extinguishing thermoplastic
Dimensions	45 x 35 x 58 mm
Mounting	35 mm DIN-Schiene
Type of connection	Screw terminals
Type of protection	IP 20 to DIN EN 60529
Class of protection	II when installed according to regulations
Mode of operation (DIN EN 60730-1) (DIN EN 60730-2-7)	1 BSTU
Degree of contamination (DIN EN 60730-1)	2
Rated surge voltage (DIN EN 60730-1)	4 kV
