Digital astro timers
Order numbers
SC 08.13 pro
172 113 pro1 channel version
SC 08.13 pro
172 113 pro
1 channel version

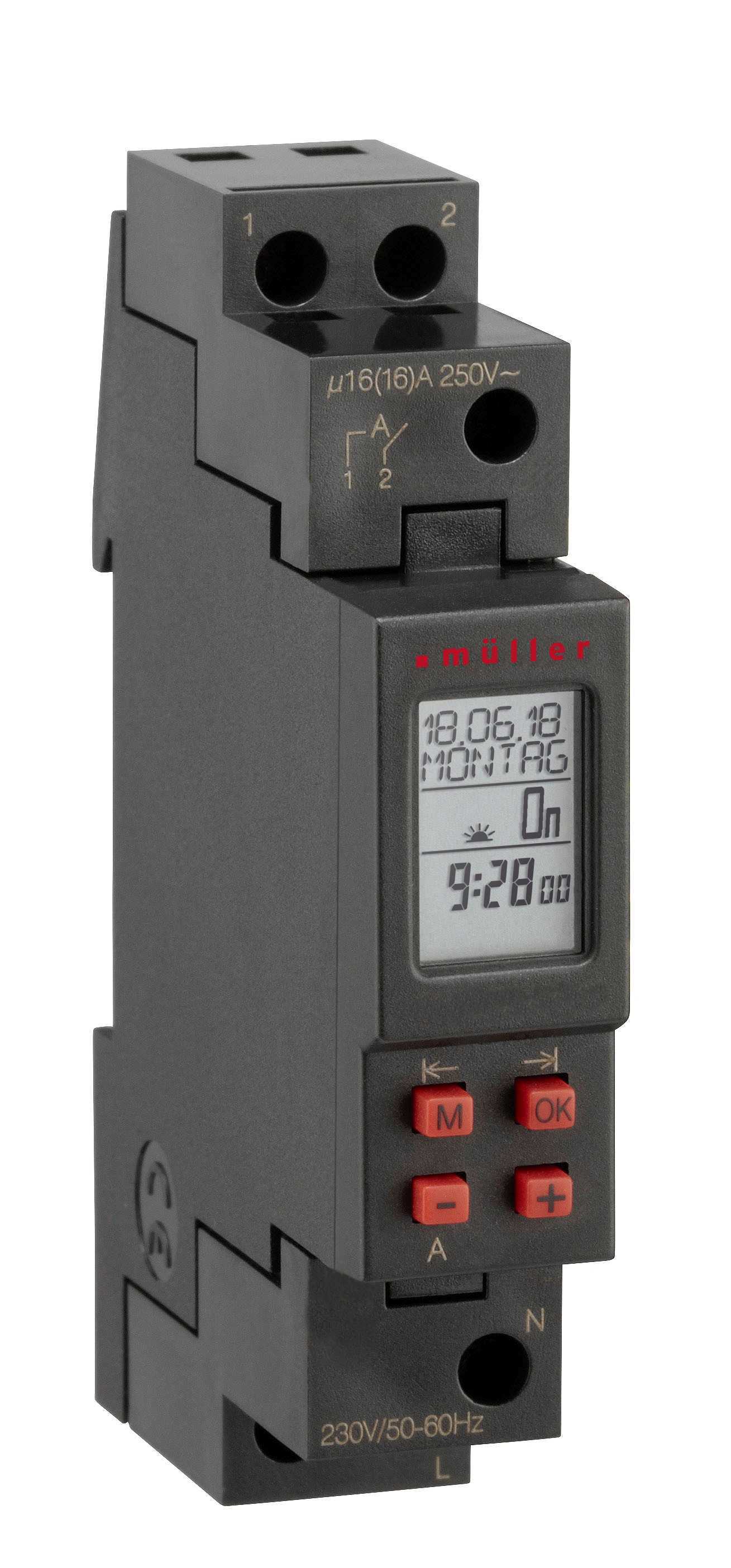

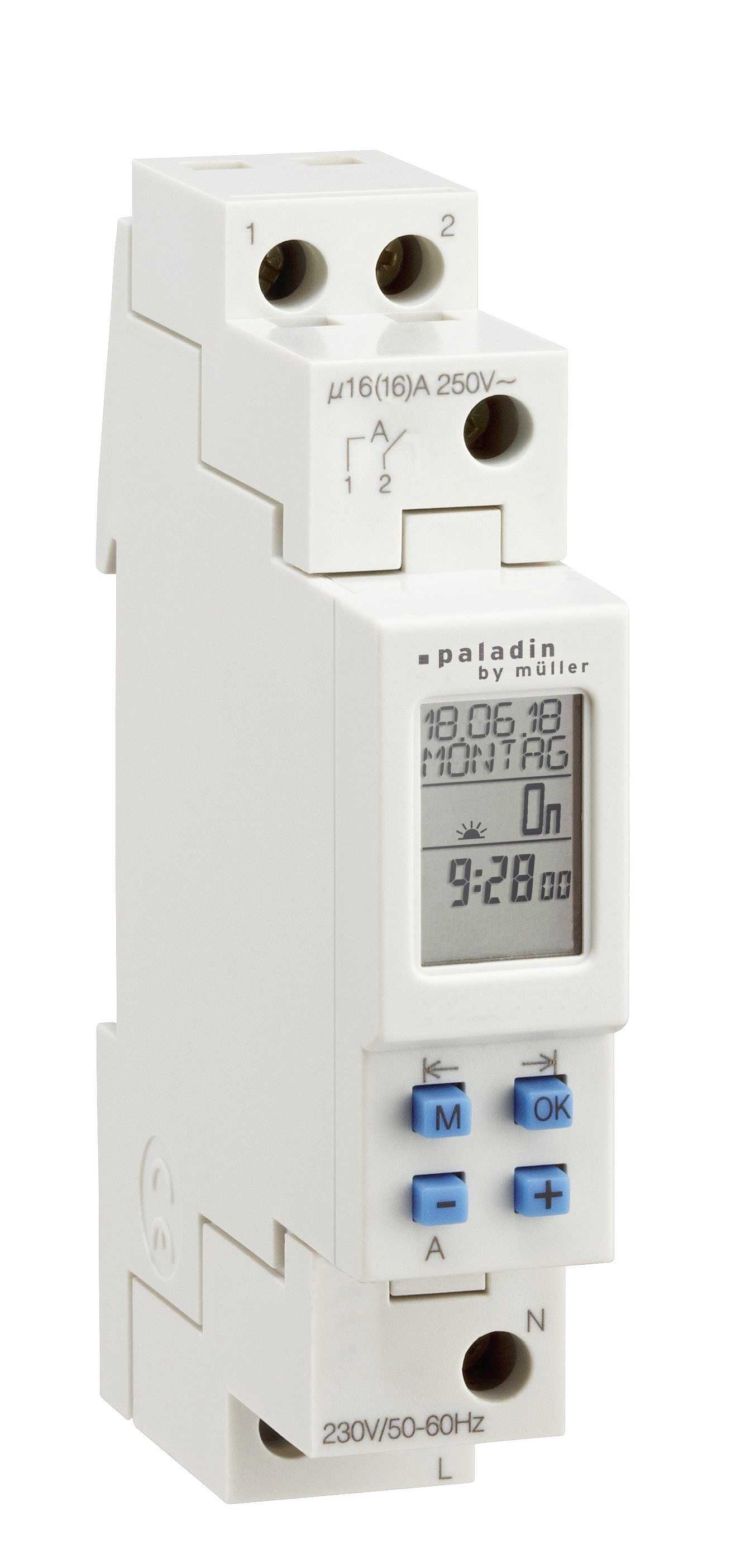

müller SC 08.13 pro - paladin 172 113 pro
Overview
- Time switch digital astro
- DIN-rail mounting 17,5 mm
- 1 channel
- Daily and weekly program
- Astro program
- Economical night program
- Extra switching times
- 60 memory locations
- Minimum interval 1 min
- Switching capacity 16 A per channel
- Permanent by date / holiday function
- Manual permanent mode
- Manual override
- Automatic sorting of switching times on readout
- Unrestricted block programming
- Fully automatic daylight saving time
- Elapsed time and pulse counter
- Security by PIN-Code
- PC-programmable
- Text based menu
- Display with two text lines
- Easy handling
- Can be programmed with supply disconnected (6 years battery-reserve)
- Unlimited program security by E2-PROM
- Optimized Quartz accuracy for typical ambient conditions in standard installations
Highlights
- Ideal for modern lamps [LED, CFL, etc.]
- Optimized for high capacitive lamp loads [W-pre-make contact with a switching capacity of 16 (16) A]

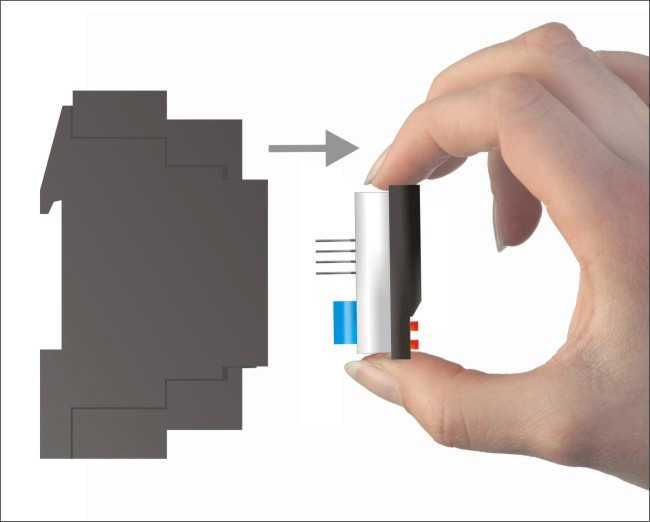

- Removable programming module
Astro program
- Switching time in respect of the position of the sun
- Each switching time independently programmable with or w/o Astro function
- Astro ON and OFF times are corrected daily with actual times of sunset and sunrise
- Offset function = for each switching time a difference (±90 min.) to the Astro time can be programmed
Intended Use
- The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
- Operate the device in a dry room only!
- The installation must be in accordance with the instruction manual.
- The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment
Supply voltage versions
- 230 V, 50-60 Hz
- Other supply voltage versions on request
