Digital astro timers

Order numbers

Logo Hugo Müller
Logo Paladin

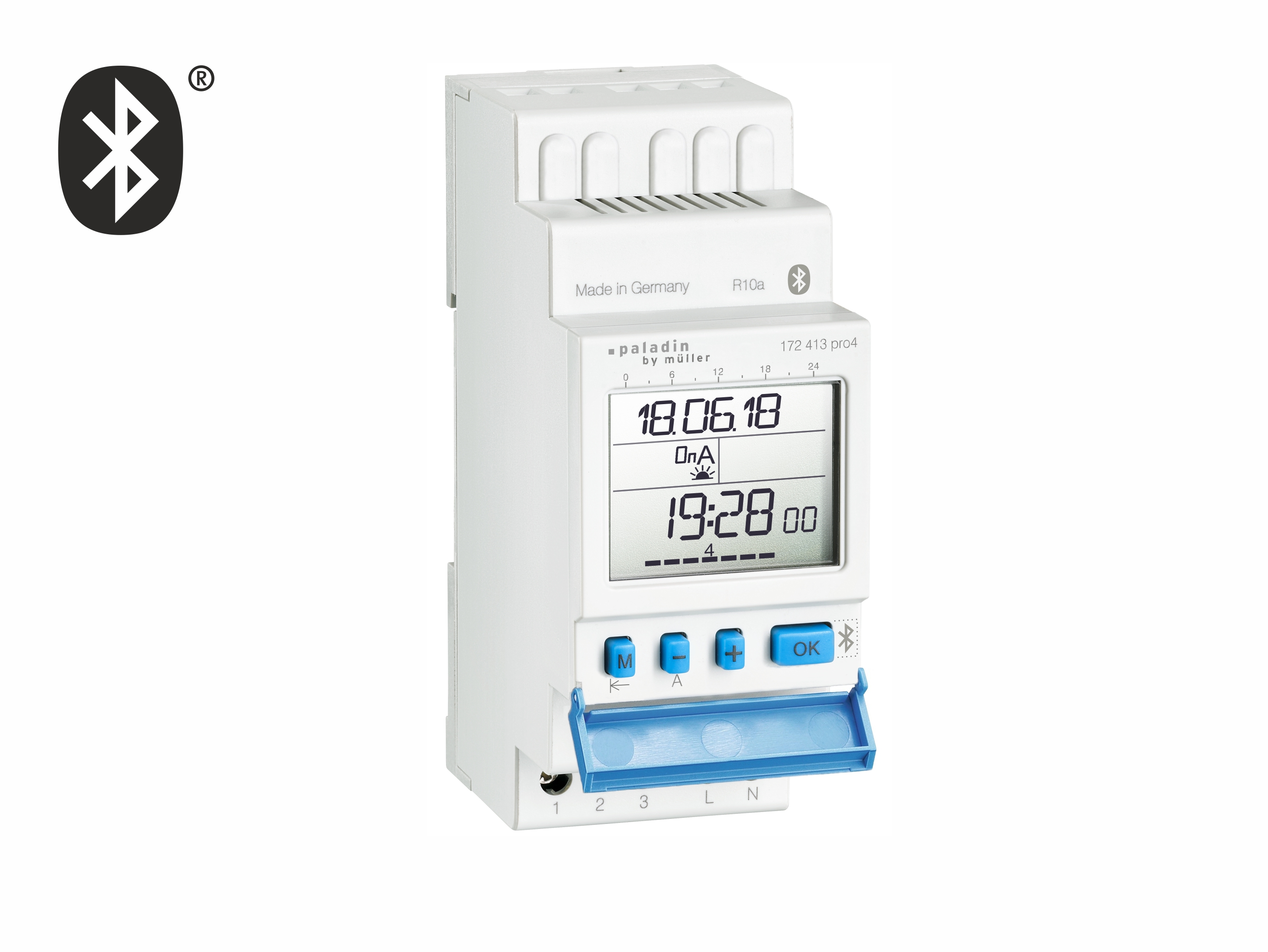

SC 28.13 pro4
172 413 pro4
1 channel version Bluetooth

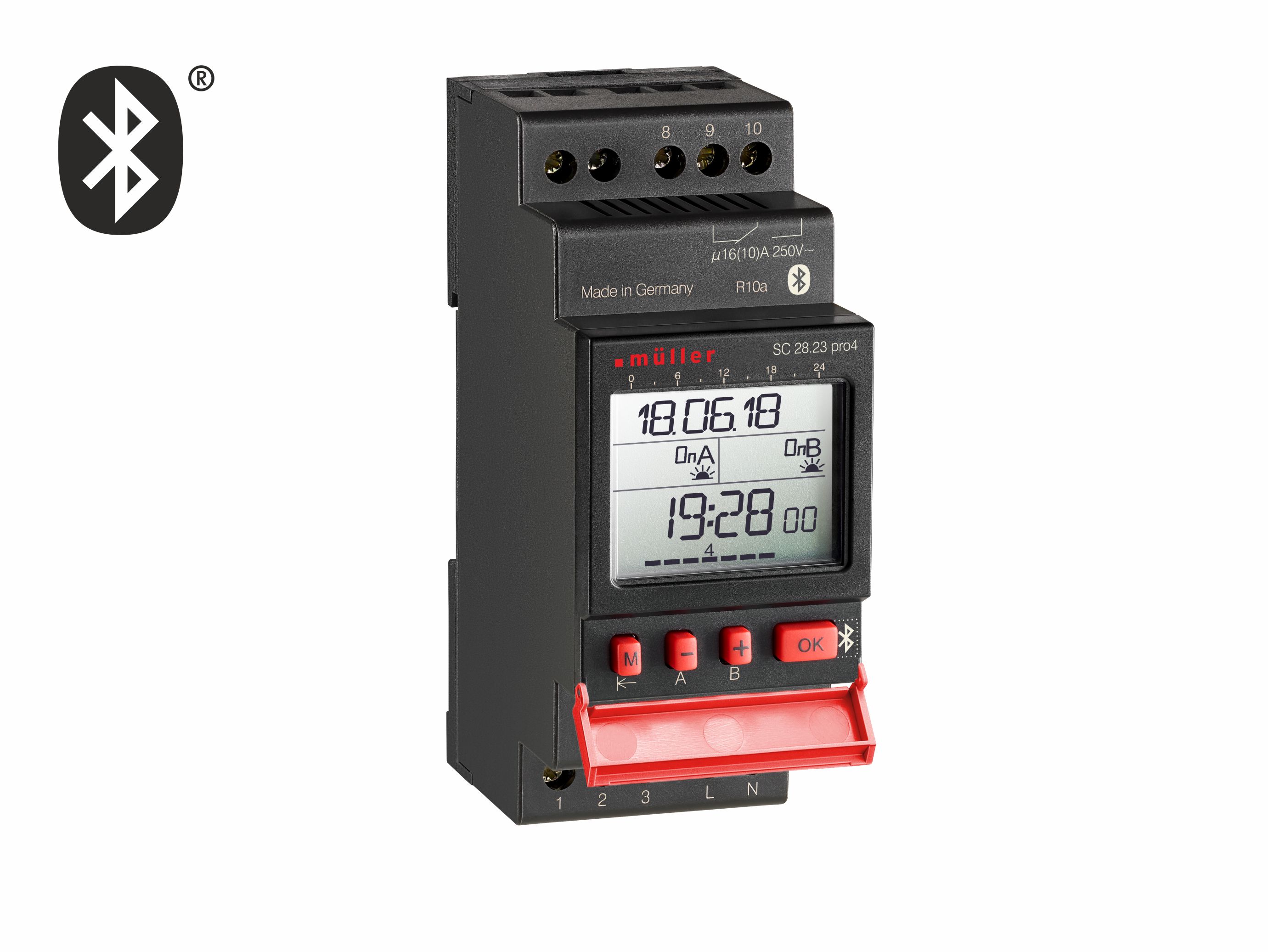

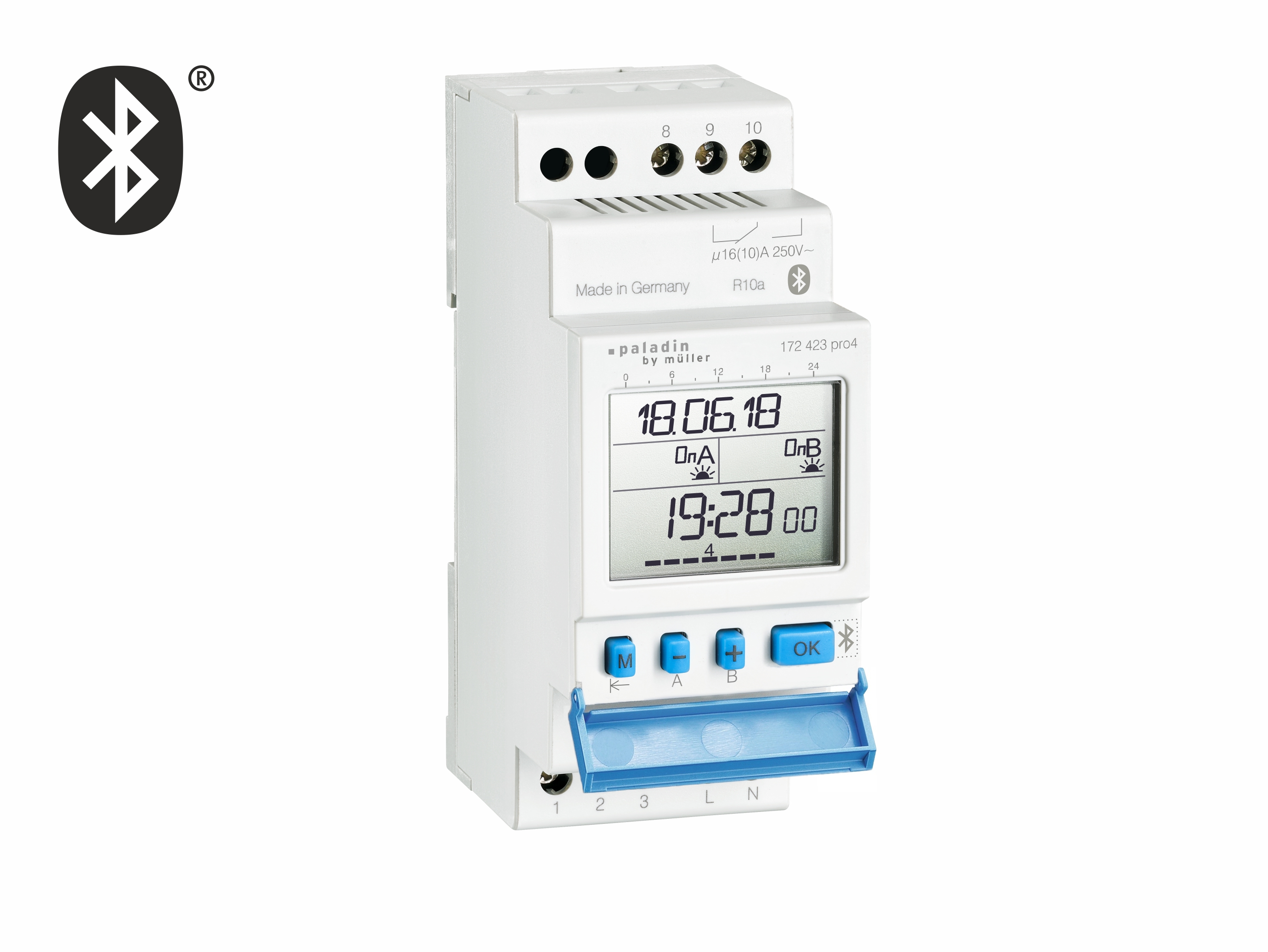

SC 28.23 pro4
172 423 pro4
2 channels version Bluetooth

Accessories

müller SC 28.x3 pro4 - paladin 172 4x3 pro4

Overview

  • 1 or 2 channels
  • Daily and weekly program
  • Astro program
  • Economical night program
  • 100 memory locations
  • Zero-crossing
  • Up to 600 W LED lamp load
  • Integrated Bluetooth
  • Programmable via app (iOS and Android)
  • 10 years battery-reserve
  • Exchangeable battery (CR 2032)
  • Minimum interval 1 min.
  • Switching capacity 16 A per channeln
  • Extra switching times ON, OFF
  • Permanent by date and time / holiday function
  • Manual permanent mode
  • Manual override
  • Fully automatic daylight saving time
  • Elapsed time and pulse counter
  • Easy handling
  • Illuminated display
  • Security by PIN-Code

Highlights

  • Programmable with smartphone via Bluetooth (free iOS and Android app)
  • No additional Data stick needed! Bluetooth integrated in time switch
  • Zero-crossing (up to 600 W LED lamp load)
  • Exchangeable battery (CR 2032) with 10 years battery reserve
  • Optimized own consumption: only 0.3 W in „standby“
  • Easy handling
  • Quick and intuitive programming
  • Can be programmed with supply disconnected
  • Unlimited program security by E2-PROM

Astro program

  • Switching time in respect of the position of the sun
  • Astro ON and OFF times are corrected daily with actual times of sunset and sunrise
  • Offset function = for each switching time a difference (±90 min.) to the Astro time can be programmed

Intended Use

  • The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
  • Operate the device in a dry room only!
  • The installation must be in accordance with the instruction manual.
  • The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment

Supply voltage versions

  • 230 V, 50-60 Hz
  • Other supply voltage versions on request
