Digital astro timers
Order numbers
173 113 easy
1 channel version
173 113 easy
1 channel version
paladin 173 113 easy
Overview

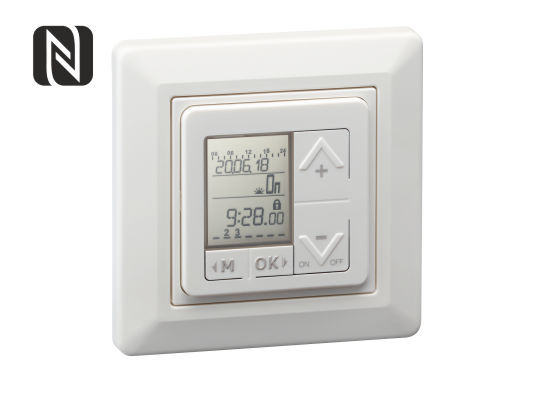

- Time switch digital astro
- Flush-mounted fitting
- 1 channel
- Daily and weekly program
- Astro program
- Economical night program
- Extra switching times
- 56 memory locations
- 10 years battery-reserve
- Minimum interval 1 min
- Switching capacity 10 A per channel
- Permanent by date / holiday function
- Manual permanent mode
- Manual override
- Automatic sorting of switching times on readout
- Unrestricted block programming
- Fully automatic daylight saving time
- Elapsed time and pulse counter
- Security by PIN-Code
- Text based menu
- Easy handling
- Unlimited program security by E2-PROM
- Optimized Quartz accuracy for typical ambient conditions in standard installations
- Illuminated display
- NFC programming (ISO 15693 Standard)
Highlights
- Astro program
- Complete switching program of the present day at a glance
- Optimized own consumption: only 0.2 W in „standby“ mode
- Large, clear and illuminated display with one text line
- Easy handling
- Quick and intuitive programming
- Can be programmed with supply disconnected
- Unlimited program security by E2 -PROM
- Programmable with smartphone via NFC (free Save'n carry App)
- Ideal for modern lamps [LED, CFL, etc.]
Astro program
- Switching time in respect of the position of the sun
- Each switching time independently programmable with or w/o Astro function
- Astro ON and OFF times are corrected daily with actual times of sunset and sunrise
- Offset function = for each switching time a difference (±90 min.) to the Astro time can be programmed
Bestimmungsgemäße Verwendung
- Das Gerät ist zur Verwendung für folgende Aufgaben vorgesehen: Beleuchtungen im privaten und gewerblichen Bereich, Straßen- und Schaufensterbeleuchtung, Steuerung von Lüftungen, Spülungen, Motoren, Pumpen, Anlagen und Anwesenheitssimulation etc.
- Das Gerät ist ausschließlich zum Einsatz in trockenen Räumen geeignet.
- Die Montage muss gemäß der Bedienungsanleitung erfolgen.
- Das Gerät ist nicht geeignet für sicherheitsrelevante Aufgaben, wie z.B. Fluchttüren, Brandschutzeinrichtungen etc.
Supply voltage versions
- 230 V, 50-60 Hz
- Other supply voltage versions on request
