Digital weekly timer

Order numbers

Logo Hugo Müller

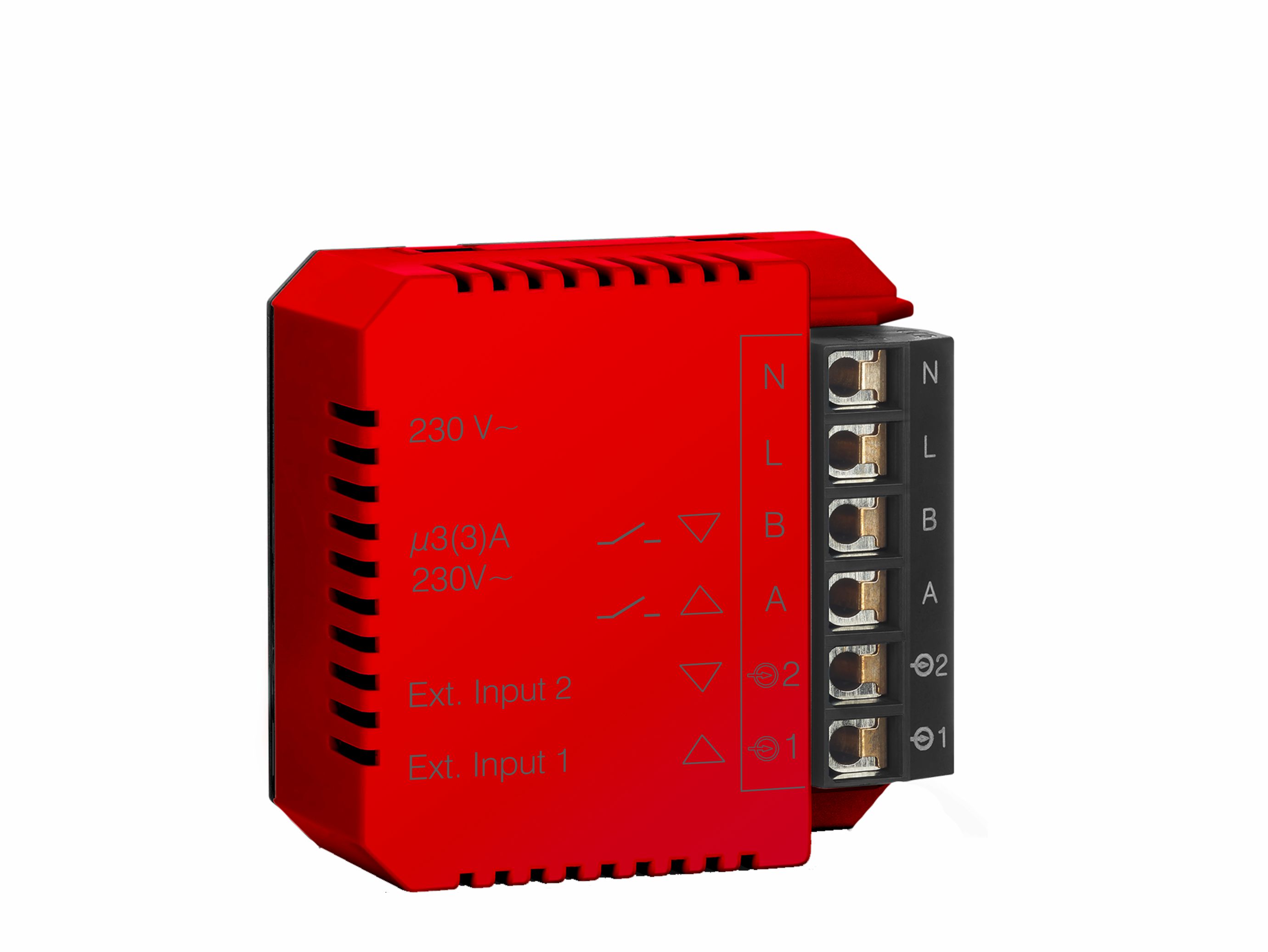

EA 36.22 pro4
Universal control
2 channels
2 Inputs
Bluetooth

available:
April 2019

Accessories

müller EA 36.22 pro4 mi.puck

Overview

  • Universal control
    - blind control or
    - Time switch (weekly or astro)
  • Flush-mounted fitting
  • 2 output channels 230 V~
  • 2 inputs 230 V~ for push-buttons or switches
  • Switching capacity 6 A in total
  • Protection against overheat
  • Fully automatic daylight saving time
  • approx. 5 years reserve
  • Integrated Bluetooth
  • Programmable and controllable via app (iOS and Android)
  • Up to 3 mobile devices can have access simultaneously
  • Up to 50 m range
  • Compact housing

Blind control / roller shutter control

  • 2 output channels UP / DOWN 230 V~
  • 2 memory locations per day
  • 3 modes of operation: automatic, manual, holiday
  • Movement duration for DOWN adjustable
  • Limitation of switching times adjustable
  • Option reverse movement pulse

Time switch weekly

  • 2 output channels 230 V~
  • 100 memory locations
  • Minimum interval 1 min.
  • Extra switching times ON, OFF and pulse by date and time
  • Permanent by date and time / holiday function
  • Output functionality adjustable and depending on input signal:
    - Change function between ON and OFF
    - Timer function (e.g. staircase lighting, ventilation)
  • Option advance warning (application staircase lighting timer)

Time switch astro

  • 2 output channels 230 V~
  • 100 memory locations
  • Minimum interval 1 min.
  • Offset function = for each switching time a difference (±90 min.) to the Astro time can be programmed
  • Permanent by date and time / holiday function
  • Output functionality adjustable and depending on input signal:
    - Change function between ON and OFF
    - Timer function (e.g. staircase lighting, ventilation)
  • Option advance warning (application staircase lighting timer)
