Digital weekly timer

Order numbers

Logo Hugo Müller
Logo Paladin

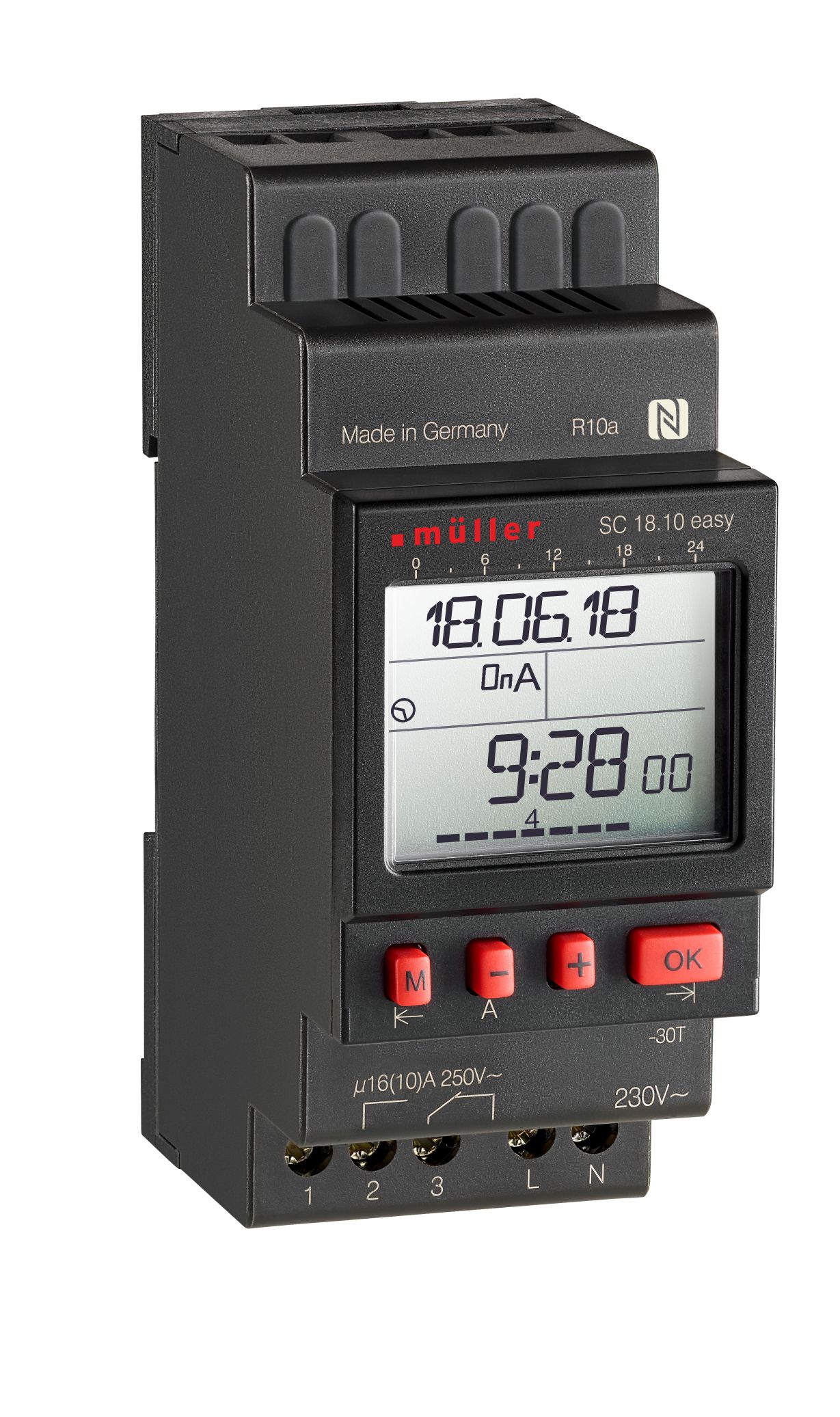

SC 18.10 easy

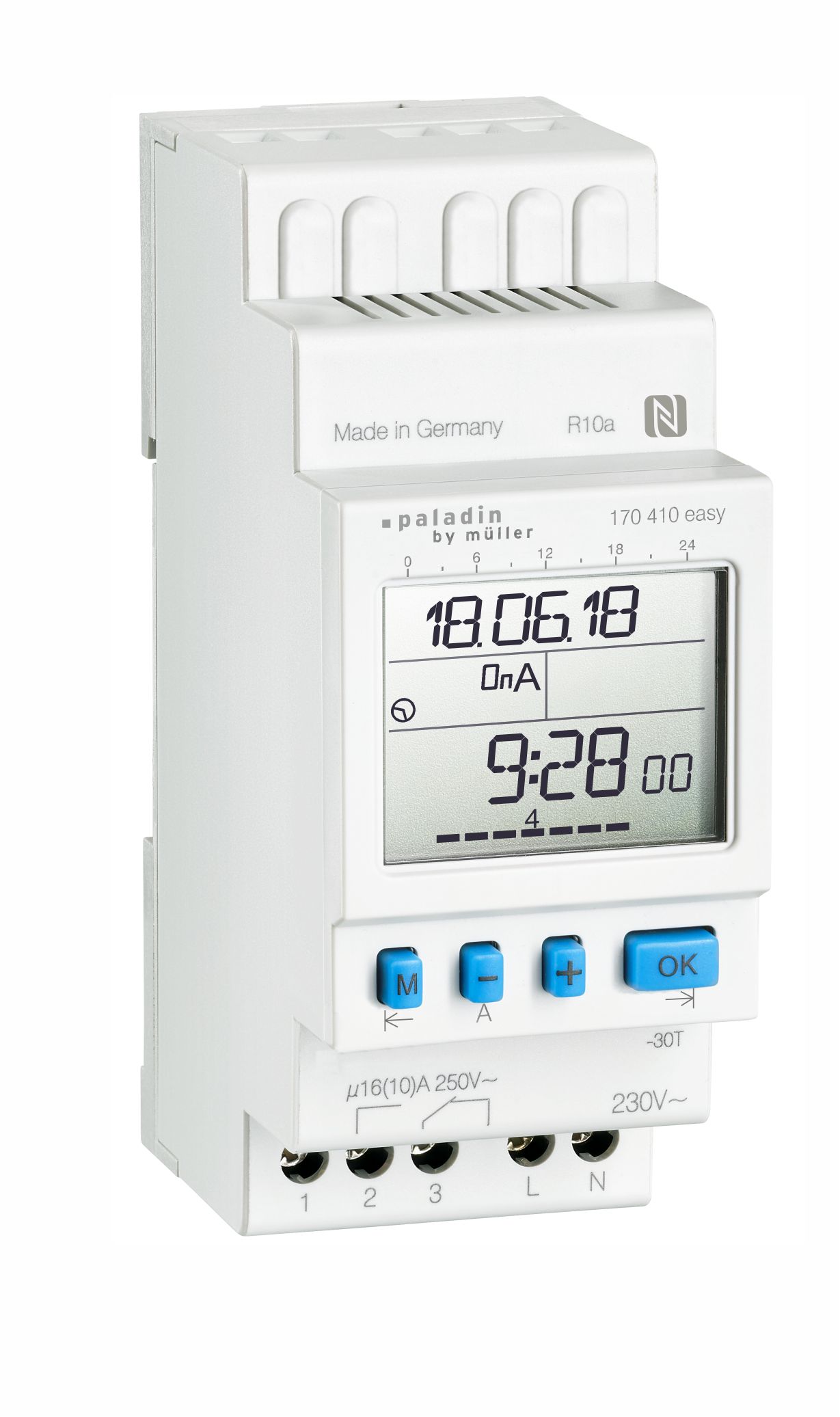

170 410 easy
1 channel version NFC

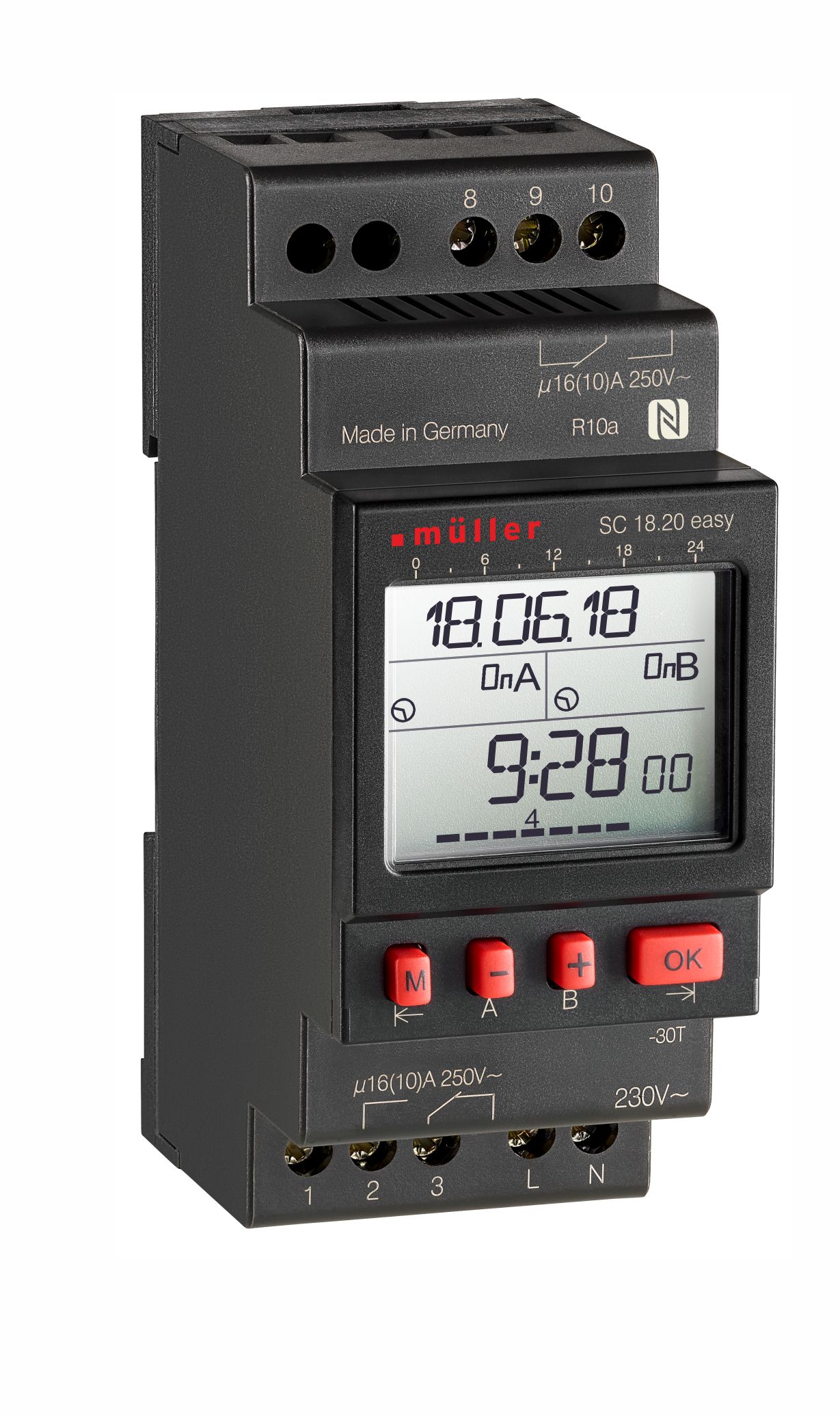

SC 18.20 easy

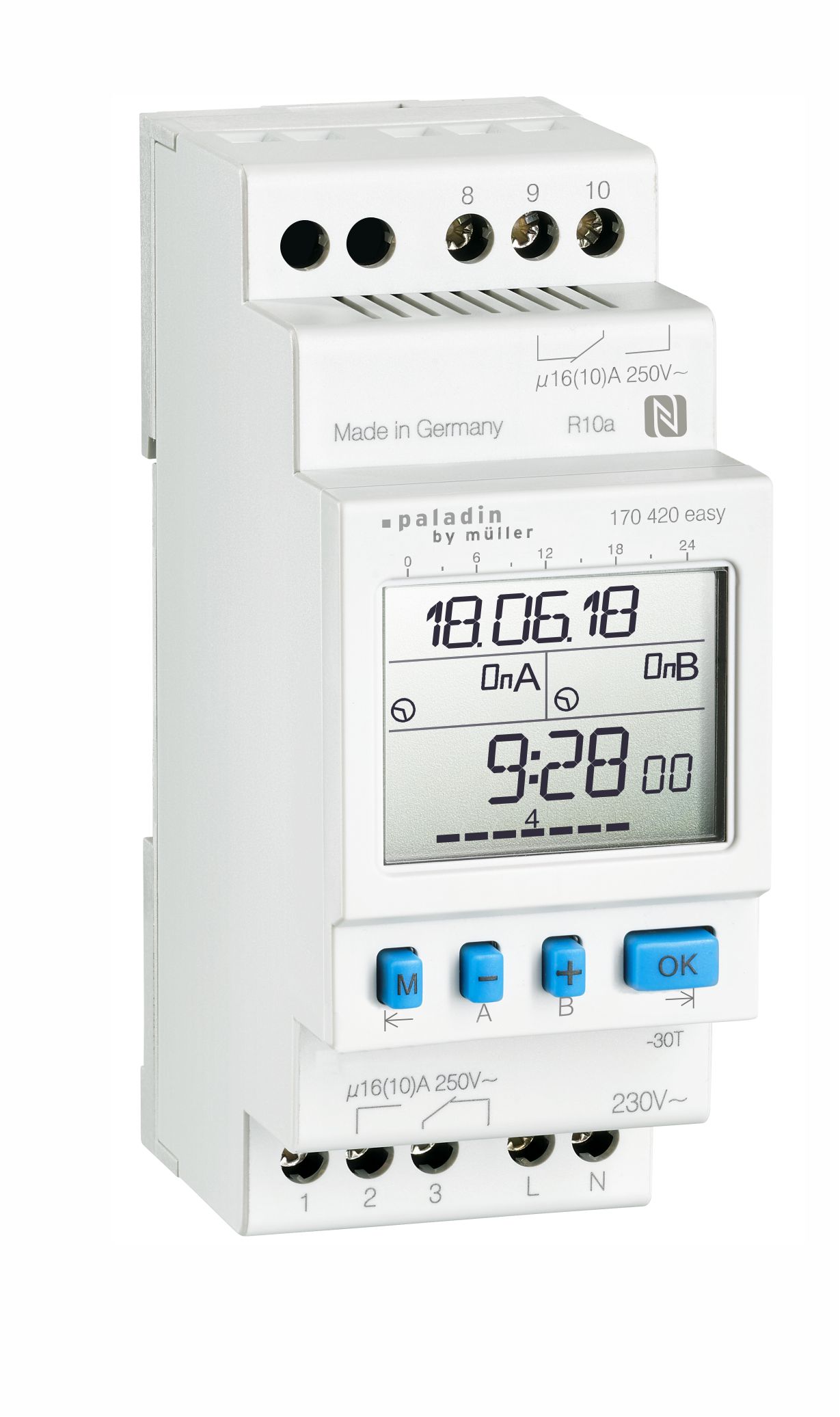

170 420 easy
2 channel version NFC

müller SC 18.x0 easy - paladin 170 4x0 easy

Overview

  • 1 or 2 channels
  • Daily and weekly program
  • Yearly program by extra switching times
  • 56 memory locations
  • Integrated NFC
  • Programmable via App
  • 10 years battery-reserve
  • Exchangeable battery (CR 2032)
  • Minimum interval 1 min.
  • Switching capacity 16 A per channeln
  • Extra switching times ON, OFF and pulse by date and time
  • Permanent by date and time / holiday function
  • Manual permanent mode
  • Manual override
  • Fully automatic daylight saving time
  • Elapsed time and pulse counter
  • Easy handling
  • Illuminated display
  • Security by PIN-Code
  • NFC programming (ISO 15693 Standard)

Highlights

  • Complete switching program of the present day at a glance
  • Exchangeable battery (CR 2032) with 10 years battery reserve
  • Optimized own consumption: only 0.2 W in „standby“ mode
  • Large, clear and illuminated display with one text line
  • Easy handling
  • Quick and intuitive programming
  • Can be programmed with supply disconnected
  • Unlimited program security by E2-PROM
  • Programmable with smartphone via NFC (free Save'n carry App)

Intended Use

  • The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
  • Operate the device in a dry room only!
  • The installation must be in accordance with the instruction manual.
  • The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment

Supply voltage versions

  • see technical data
