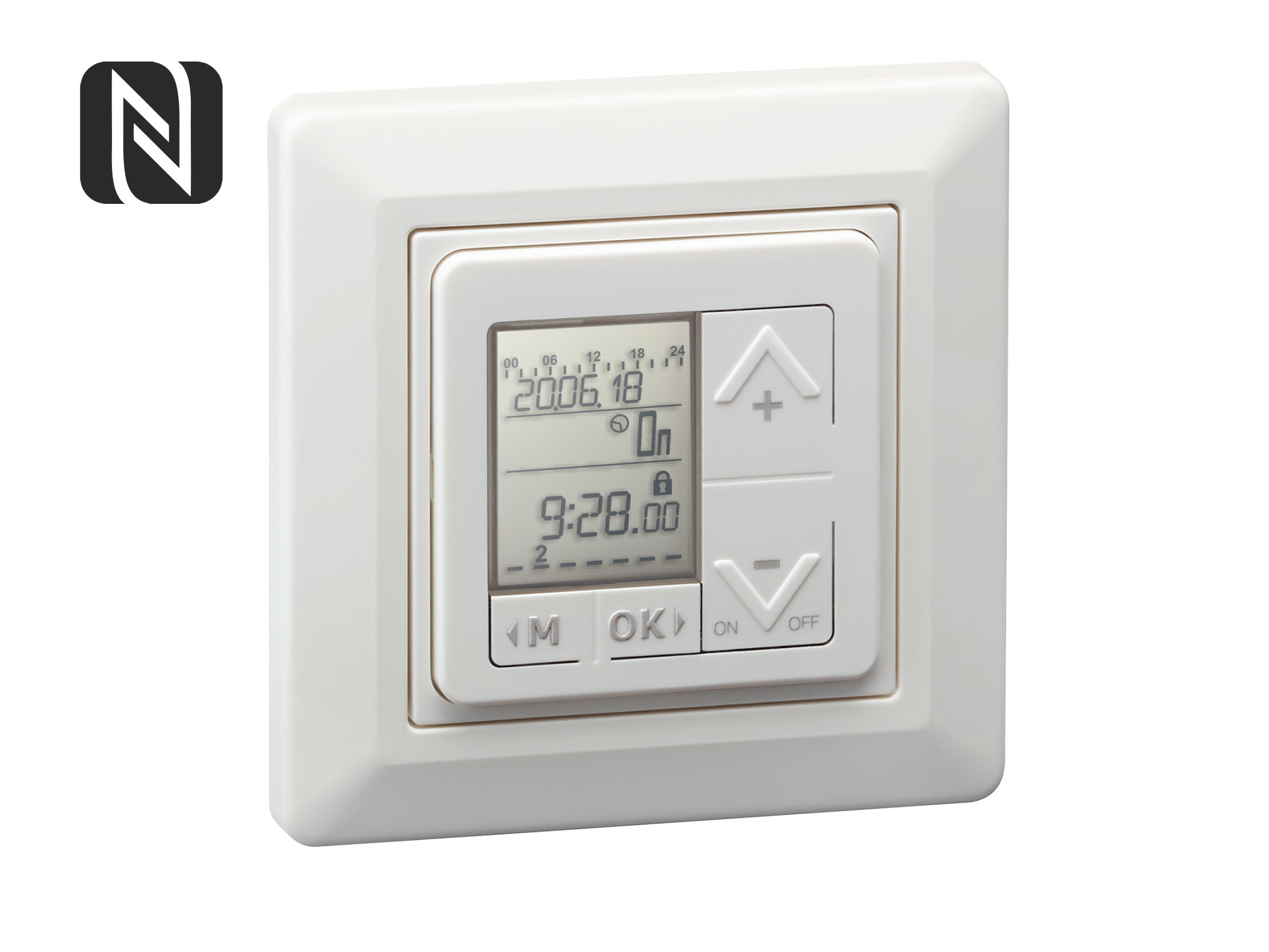

Digital weekly timer

Order numbers

Logo Paladin
173 110 easy
1 channel version

paladin 173 110 easy

Overview

  • Time switch digital week
  • Flush-mounted fitting
  • 1 channel
  • Daily and weekly program
  • Economical night program
  • 56 memory locations
  • 10 years battery-reserve
  • Minimum interval 1 min
  • Switching capacity 10 A per channel
  • Extra switching times ON, OFF and pulse by date and time
  • Permanent by date / holiday function
  • Manual permanent mode
  • Manual override
  • Automatic sorting of switching times on readout
  • Unrestricted block programming
  • Fully automatic daylight saving time
  • Elapsed time and pulse counter
  • Security by PIN-Code
  • Text based menu
  • Easy handling
  • Unlimited program security by E2-PROM
  • Optimized Quartz accuracy for typical ambient conditions in standard installations
  • Illuminated display
  • NFC programming (ISO 15693 Standard)

Highlights

  • Weekly program
  • Complete switching program of the present day at a glance
  • Optimized own consumption: only 0.2 W in „standby“ mode
  • Large, clear and illuminated display with one text line
  • Easy handling
  • Quick and intuitive programming
  • Can be programmed with supply disconnected
  • Unlimited program security by E2 -PROM
  • Programmable with smartphone via NFC (free Save'n carry App)
  • Ideal for modern lamps [LED, CFL, etc.]

Intended use

  • The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
  • Operate the device in a dry room only!
  • The installation must be in accordance with the instruction manual.
  • The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment.

Supply voltage versions

  • 230 V, 50-60 Hz
  • Other supply voltage versions on request
