Elapsed time counters

Order numbers

Logo Hugo Müller
BG 40.17
DC / Front 48 x 48mm
BW 40.18
AC / Front 48 x 48mm
BG 40.27
DC / Front 55 x 55mm
BW 40.28
AC / Front 55 x 55mm
BG 40.37
DC / Front 72 x 72mm
BW 40.38
AC / Front 72 x 72mm

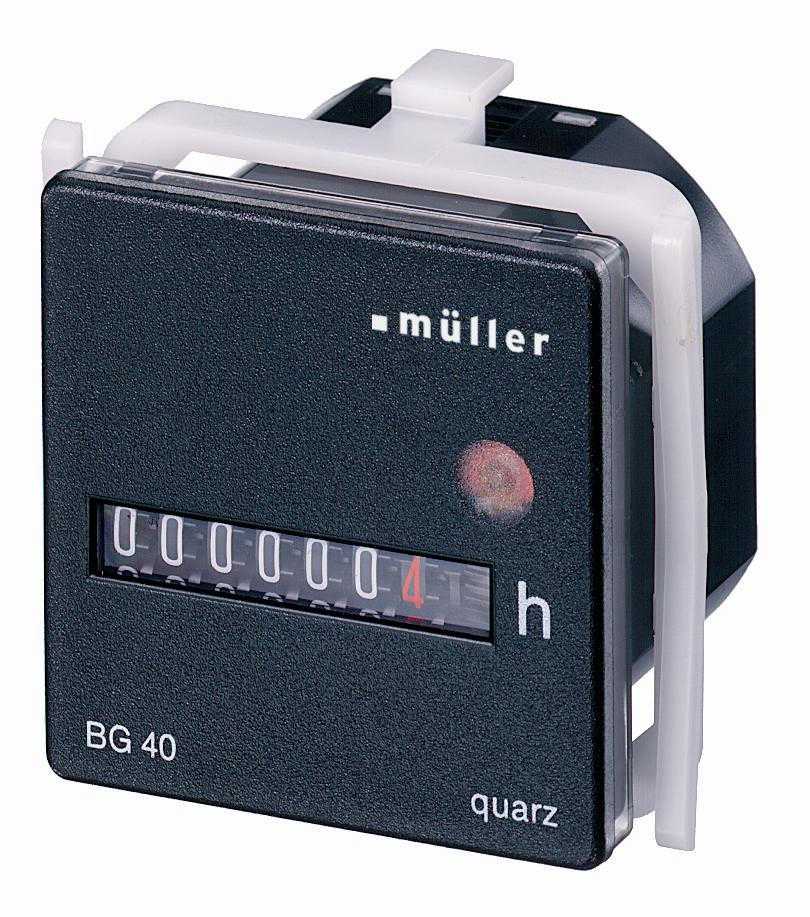

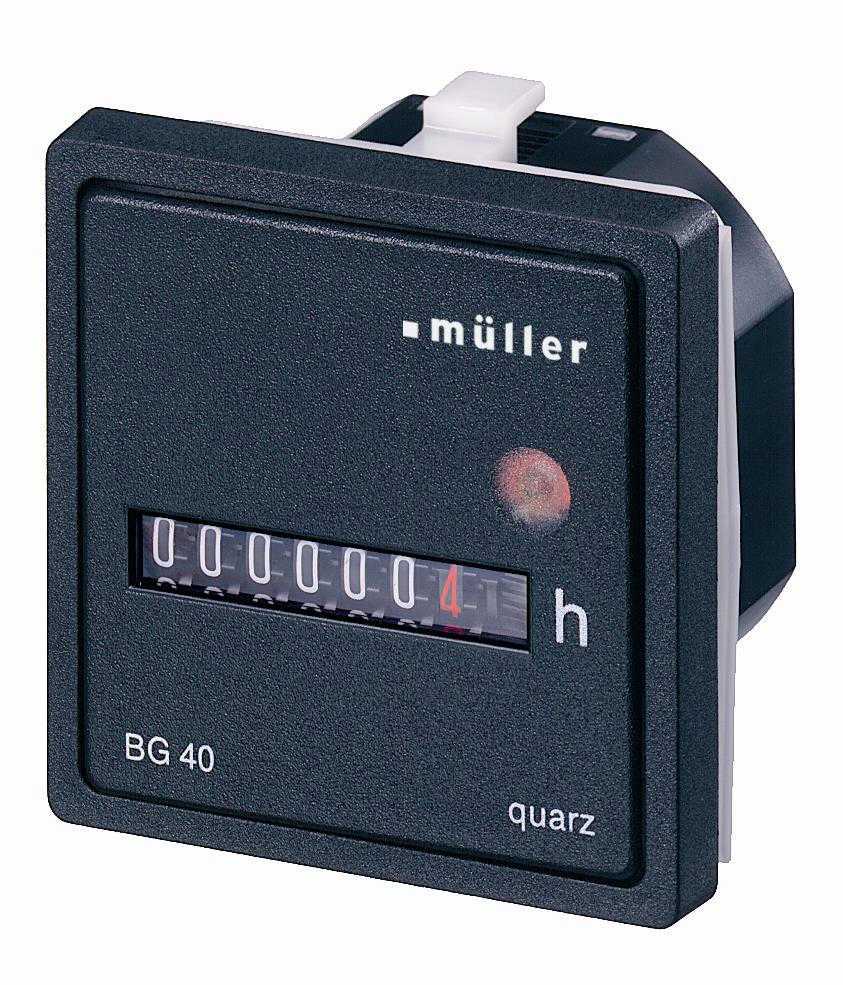

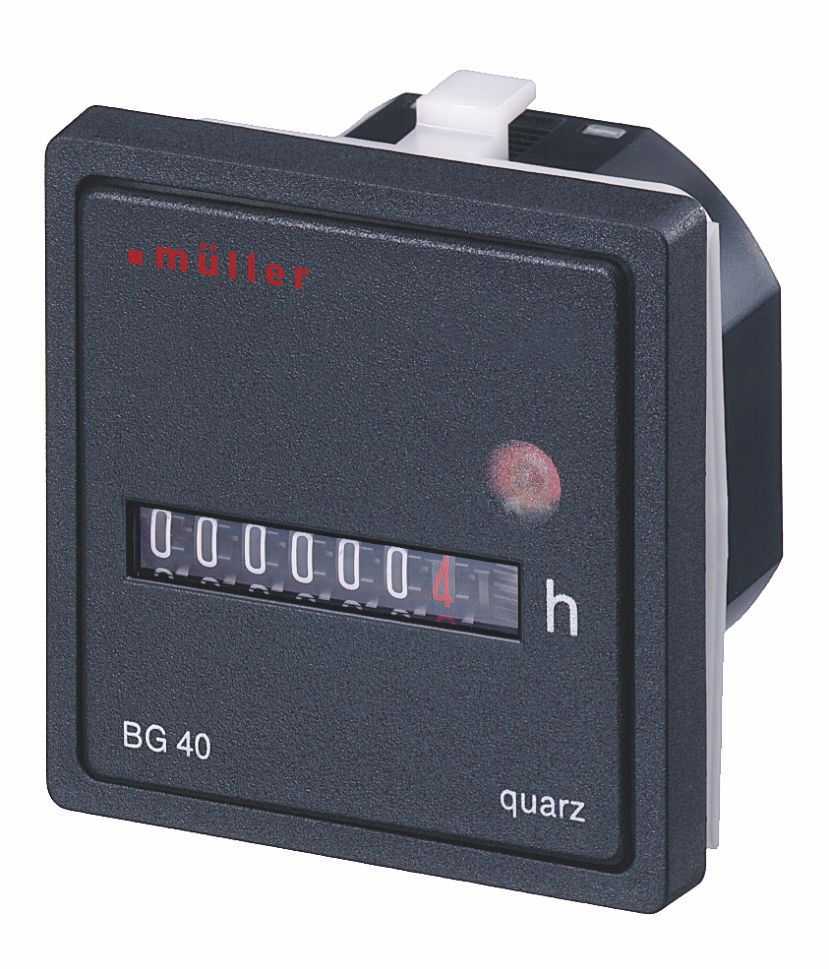

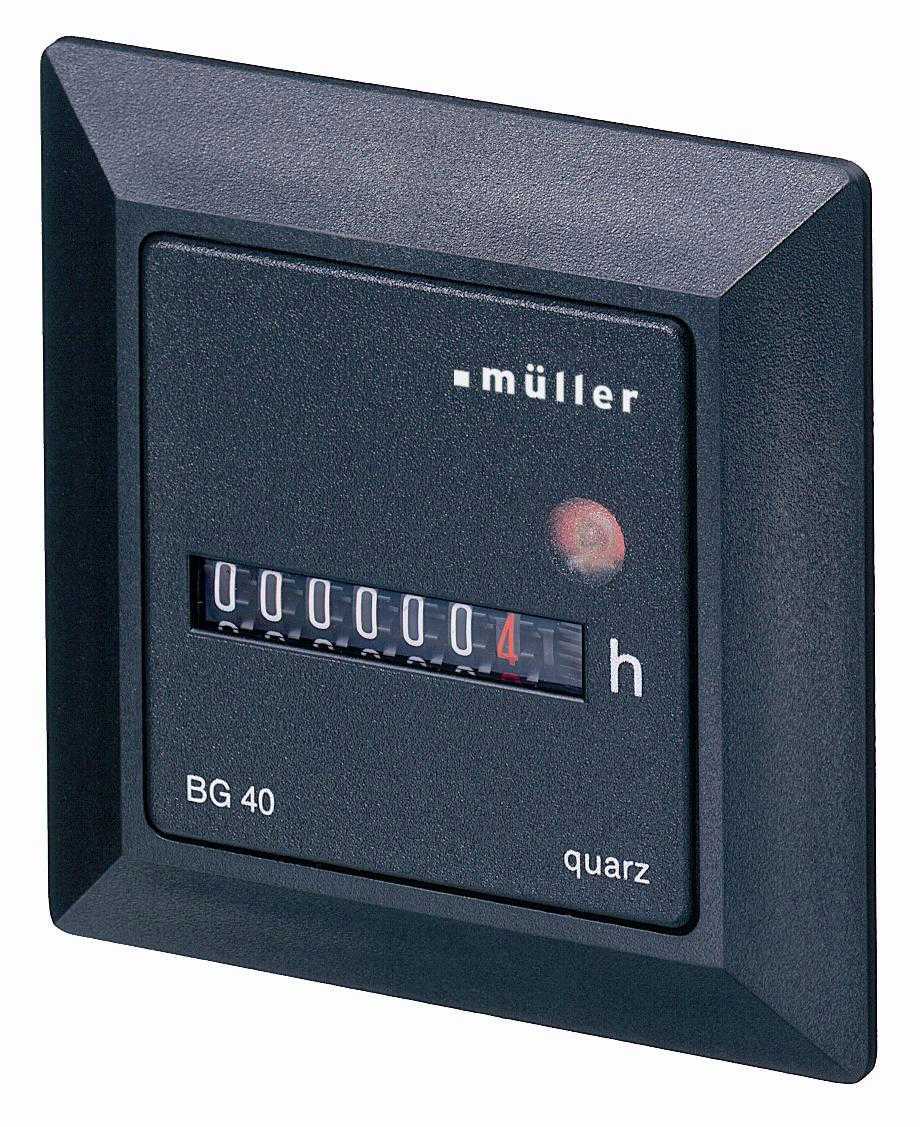

müller BW 40 - BG 40

Overview

  • Large format numerals 4.4 mm in height
  • Easy to connect – screw terminals accessible from rear
  • Attachments for other cutouts, see accessory
  • Ring seal for IP 54 – also seals front panel cutout
  • BG: quartz stabilized
  • BG: large voltage ranges

Highlights

  • with retaining clip
  • with universal connections
  • touch proof connections to VBG4
  • low-noise
  • BW: Alternating current
  • BG: Direct current quartz

Intended use

  • The device fits for the particular use of the following tasks: summed measuring of operating hours in control cabinets and plants, operating hours of pumps and machines.

Supply voltage versions

  • BW 40 Alternating current
    230 V, 50 Hz [Standard]
    115 V, 50 Hz
    24 V, 50 Hz
    other supply voltage versions on request
  • BG 40 Direct current
    12-48 V DC [Standard]
    5-24 V DC
    36-120 V DC
    other supply voltage versions on request
