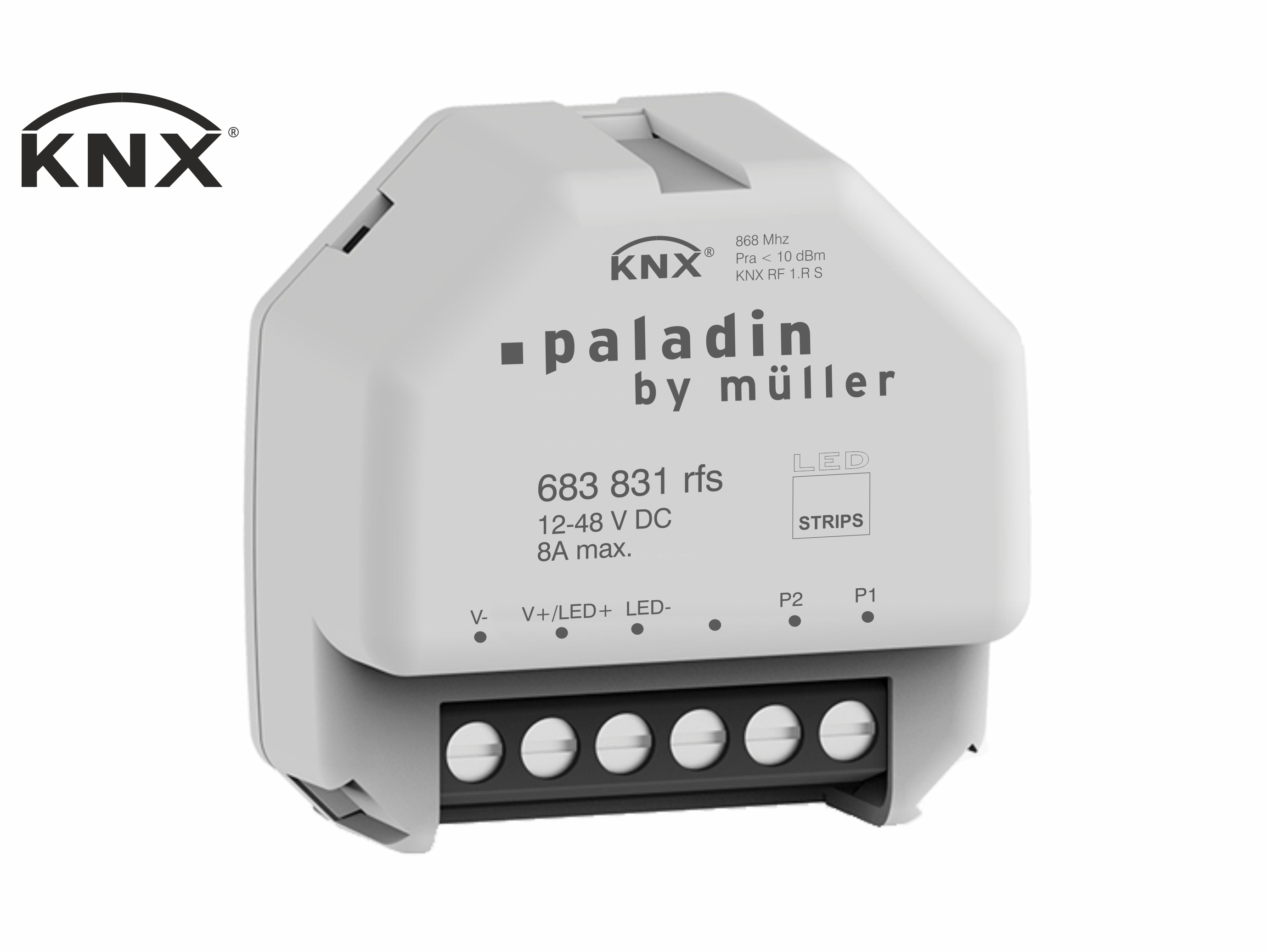

683 831 rfs
Dimmer LED Streifen
PWM bis 8 A

paladin 683 831 rfs

Overview

  • Dimmer for Building automation
  • Dimming of LED strips up to 12 V - 48 V
  • Maximum load 8A (12 V: 96 W, 24 V: 192 W)
  • Minimum dimming level adjustable
  • Control by pulse width modulation (PWM)
  • KNX-RF 1.R S-mode
  • Up to 5 Scenes can be stored / called up
  • Staircase lighting timer function with (optional) advanced warning function
  • Integrated cycle function
  • Optional memory function of the last dimming value
  • Additional connection for wired push-buttons
  • RF-repeater function included
  • Compact housing
  • Flush-mounted fitting
  • Protection degree IP20

Intended use

  • The device fits for the particular use of the following tasks: dimming from the previously defined lamp.
  • The dimmer is used in closed rooms.
  • The dimming levevl is controlled by the functions described in this manual.
  • Communication with the KNX Bus must be carried out using a KNX TP / KNX RF S-Mode media coupler.
