| Supply voltage |
via KNX bus voltage |
| Bus current |
< 12 mA |
| Bus system |
KNX |
| Volume level |
soft (approx. 40 dB)
medium (approx. 55 dB)
loud (approx. 70 dB) |
| Tone sequence |
continuous tone or adjustable sequence |
| Permitted ambient temperature |
-10...+45 °C |
| Housing |
self-extinguishing thermoplastic |
| Dimensions |
55 x 55 x 12 mm |
| Housing color |
studio white (similar to RAL 9016)
specific colors on request |
| Mounting |
wall mounting
in frame (55x55mm) with mounting plate
wall mounting with mounting angle |
| Type of connection |
push-in connector |
| Type of protection |
according to DIN EN 60529:
IP X1
IP X4 when mounted with mounting angle |
| Class of protection |
III when installed according to regulations |

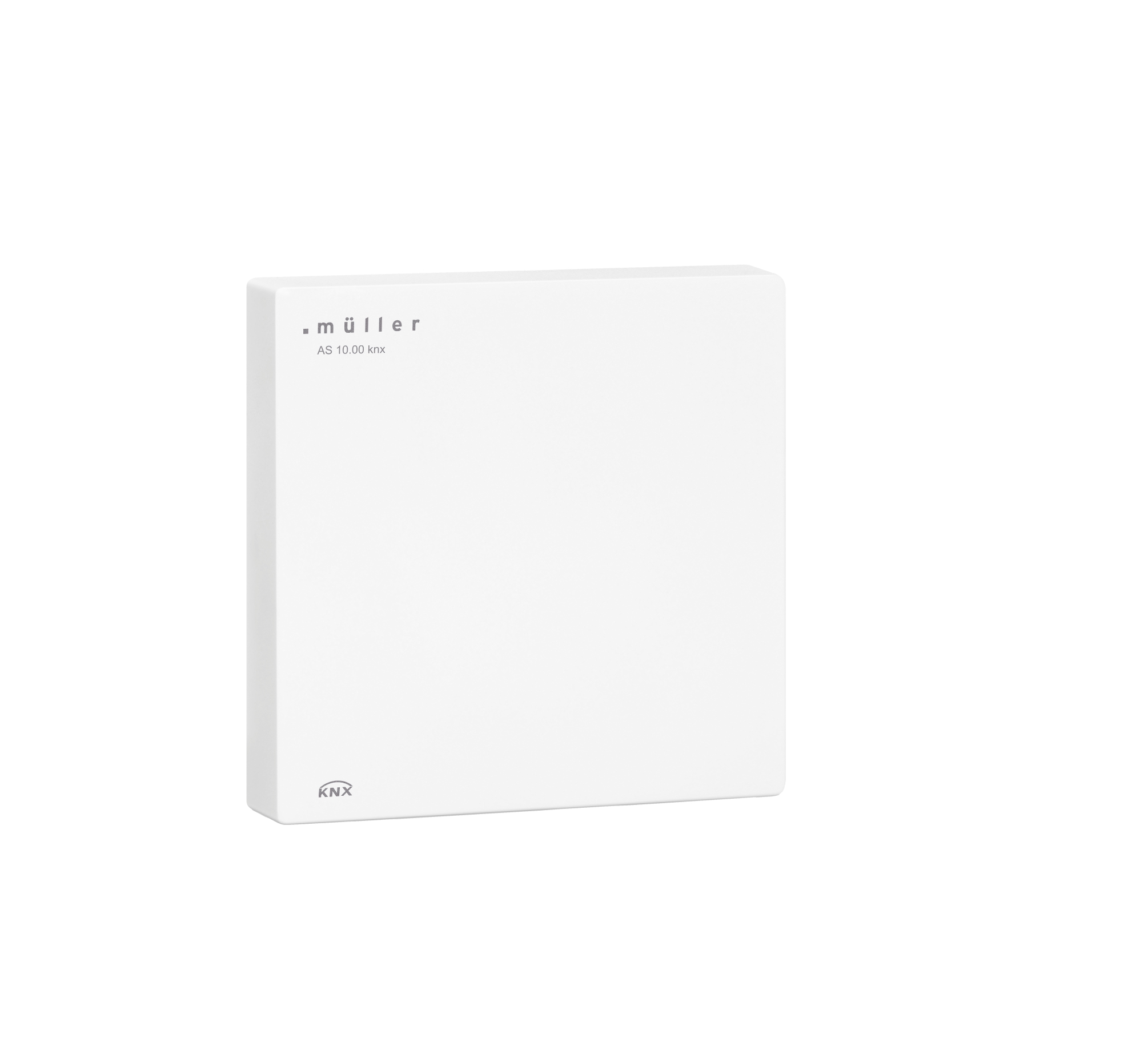

AS 10.00 knx
