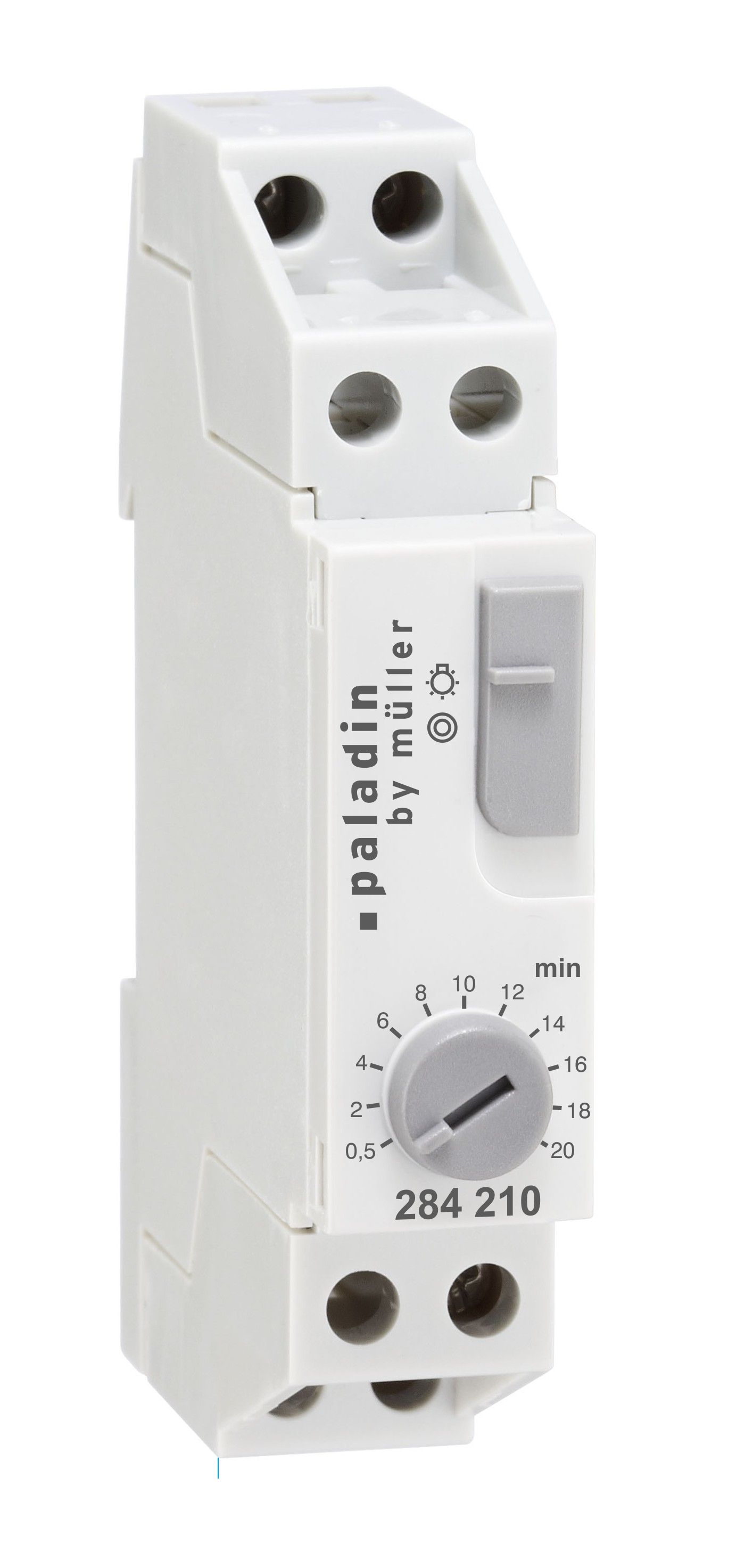

paladin 284 210 - 284 250

Overview

The device fits for the particular use of the following tasks: light control with an adjustable time for stairs, cellars, sanitary facilities, entrance areas and buildings.
The installation must be in accordance with the instruction manual.

Supply voltages	230 V, 50 Hz
Channel	Normally open,
Switching capacity resitive load: inductive load:	16 A / 250 V~ at cosϕ=1 4 A at cosϕ=0,6
Zero-cross switching	Yes / for relay-saving switching
Contact materia	AgSnO₂
Filament Lamp, Halogen Lamp	3.000 W
Fluorescent Lamp uncompensated	3.600 W
Fluorescent Lamp parallel compensated (130 μF)	1.300 W
Compact Fluorescent Lamp	18 x 7 W 12 x 11 W 10 x 15 W 10 x 20 W 10 x 23 W max.
Advance warning function (284 250)	DIN 18015-2, 2 warning signals (the light is blinking twice), 40 sec. and 30 sec. before switch-off
Glow Lamp load	max. 100 mA
Mounting	35 mm DIN-rail
Permitted ambient temperature	–10…+50 °C
Type of protection	IP 20
