Codice ordinativo

VS 10.18

111 120

Tag
Ohne Gangreserve

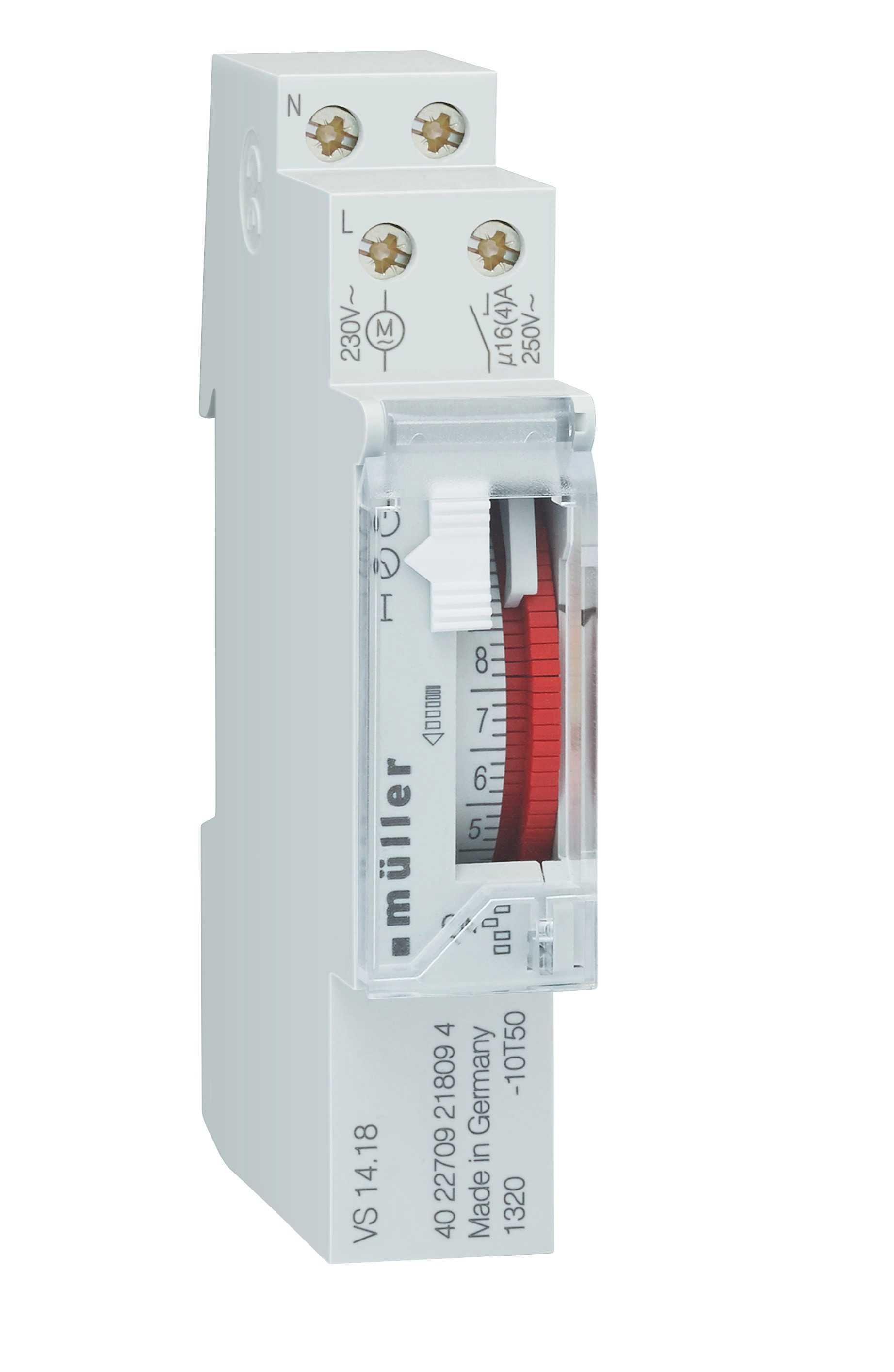

VS 14.18

114 120

Tag
Mit Gangreserve

müller VS 1x.18 - paladin 11x 120

The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
Operate the device in a dry room only!
The installation must be in accordance with the instruction manual.
The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment.

	Voltage	EAN	Art. No.
VS 10.18	230 V 50-60 Hz	4022709218087	21808
VS 14.18	230 V 50-60 Hz	4022709218094	21809

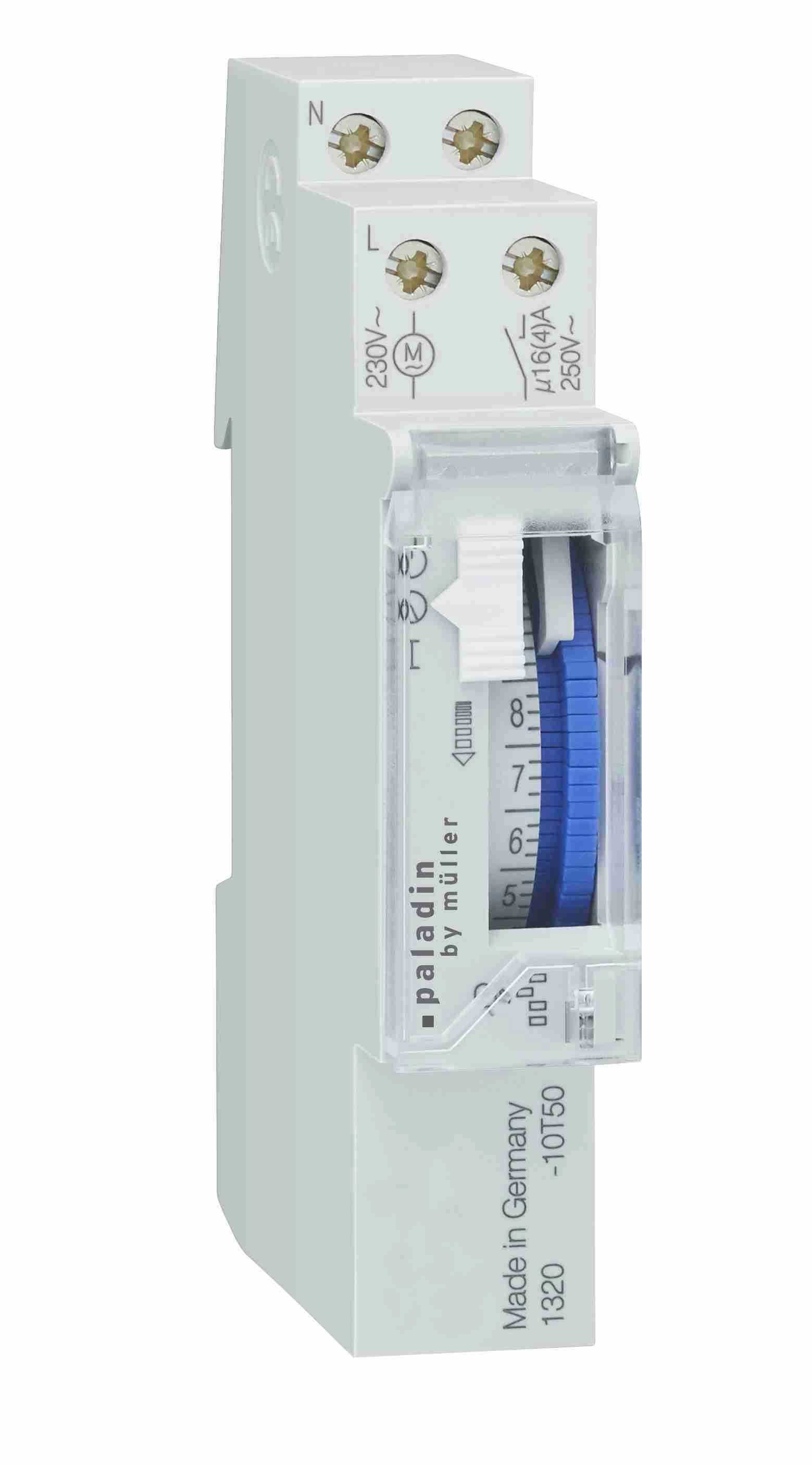

111 120	230 V 50-60 Hz	4011732013202	01320
114 120	230 V 50-60 Hz	4011732013219	01321
Other supply voltage versions on request

Supply voltages	230 V, 50-60 Hz
Power consumption (real power)	0,4 W
Switch (potential-free)	Normally open, gap < 3mm (µ)
Manual override switch	Permanent ON / Permanent OFF / AUTO
Contact material	AgSnO₂
Switching capacity resistive load: inductive load:	16 A / 250 V~ at cosφ=1 4 A / 250 V~ at cosφ=0,6
Min. switching power	1.000 mW (10 V / 10 mA)
Filament Lamp, Halogen Lamp	2.000 W
Fluorescent Lamp uncopensated	1.000 W
Fluoresent Lamp series compensated	750 W
LED (230 V~) > 5 W / CFL	200 W
Minimum switching interval	15 Min.
Time base	Quartz
Accuracy (at 23 °C)	≤±1 Sec./day
Power back-up (at 20 °C)	approx. 100 h
Permitted ambient temperature	–10…+50 °C
Housing	self-extinguishing thermoplastic
Dimensions	45 x 17,5 x 58 mm
Mounting	35 mm DIN-rail
Type of connection	Screw terminals
Type of protection	IP 20 to DIN EN 60529
Class of protection	II when installed according to regulations
Mode of operation (DIN EN 60730-1) (DIN EN 60730-2-7)	1 BSTU
Degree of contamination (DIN EN 60730-1)	2
Rated surge voltage (DIN EN 60730-1)	4 kV
