Interruttori orari digitali astronomici

Codice ordinativo

Logo Paladin
173 113 easy
1 Kanal Version

paladin 173 113 easy

Overview

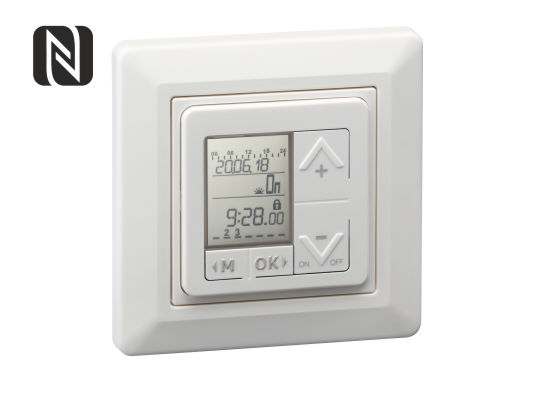

  • Time switch digital astro
  • Flush-mounted fitting
  • 1 channel
  • Daily and weekly program
  • Astro program
  • Economical night program
  • Extra switching times
  • 56 memory locations
  • 10 years battery-reserve
  • Minimum interval 1 min
  • Switching capacity 10 A per channel
  • Permanent by date / holiday function
  • Manual permanent mode
  • Manual override
  • Automatic sorting of switching times on readout
  • Unrestricted block programming
  • Fully automatic daylight saving time
  • Elapsed time and pulse counter
  • Security by PIN-Code
  • Text based menu
  • Easy handling
  • Unlimited program security by E2-PROM
  • Optimized Quartz accuracy for typical ambient conditions in standard installations
  • Illuminated display
  • NFC programming (ISO 15693 Standard)

Highlights

  • Astro program
  • Complete switching program of the present day at a glance
  • Optimized own consumption: only 0.2 W in „standby“ mode
  • Large, clear and illuminated display with one text line
  • Easy handling
  • Quick and intuitive programming
  • Can be programmed with supply disconnected
  • Unlimited program security by E2 -PROM
  • Programmable with smartphone via NFC (free Save'n carry App)
  • Ideal for modern lamps [LED, CFL, etc.]

Astro program

  • Switching time in respect of the position of the sun
  • Each switching time independently programmable with or w/o Astro function
  • Astro ON and OFF times are corrected daily with actual times of sunset and sunrise
  • Offset function = for each switching time a difference (±90 min.) to the Astro time can be programmed

Bestimmungsgemäße Verwendung

  • Das Gerät ist zur Verwendung für folgende Aufgaben vorgesehen: Beleuchtungen im privaten und gewerblichen Bereich, Straßen- und Schaufensterbeleuchtung, Steuerung von Lüftungen, Spülungen, Motoren, Pumpen, Anlagen und Anwesenheitssimulation etc.
  • Das Gerät ist ausschließlich zum Einsatz in trockenen Räumen geeignet.
  • Die Montage muss gemäß der Bedienungsanleitung erfolgen.
  • Das Gerät ist nicht geeignet für sicherheitsrelevante Aufgaben, wie z.B. Fluchttüren, Brandschutzeinrichtungen etc.

Supply voltage versions

  • 230 V, 50-60 Hz
  • Other supply voltage versions on request
