Interruttori orari digitali settimanali

Codice ordinativo

Logo Hugo Müller
Logo Paladin
SC 08.11 pro
172 110 pro
1 Kanal Version

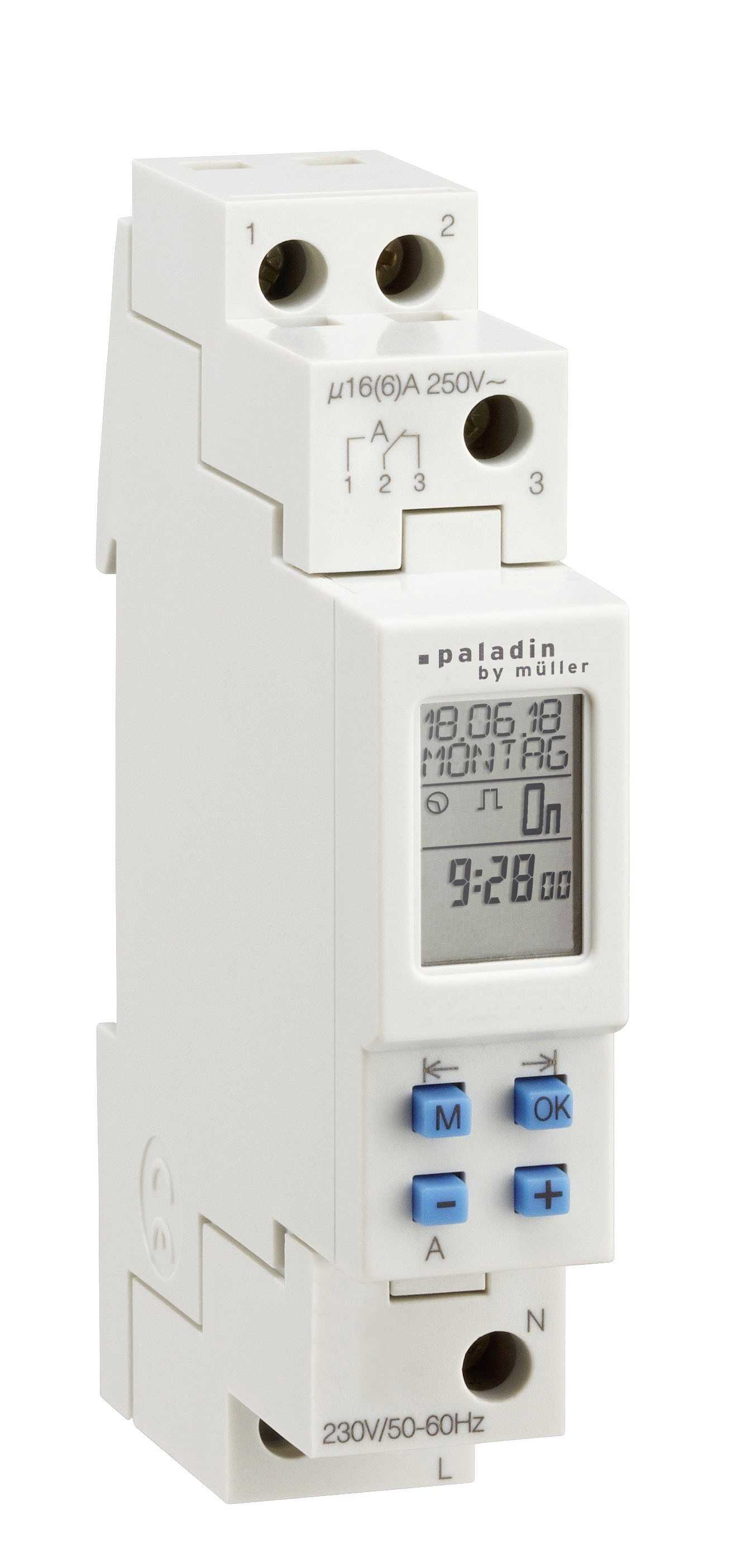

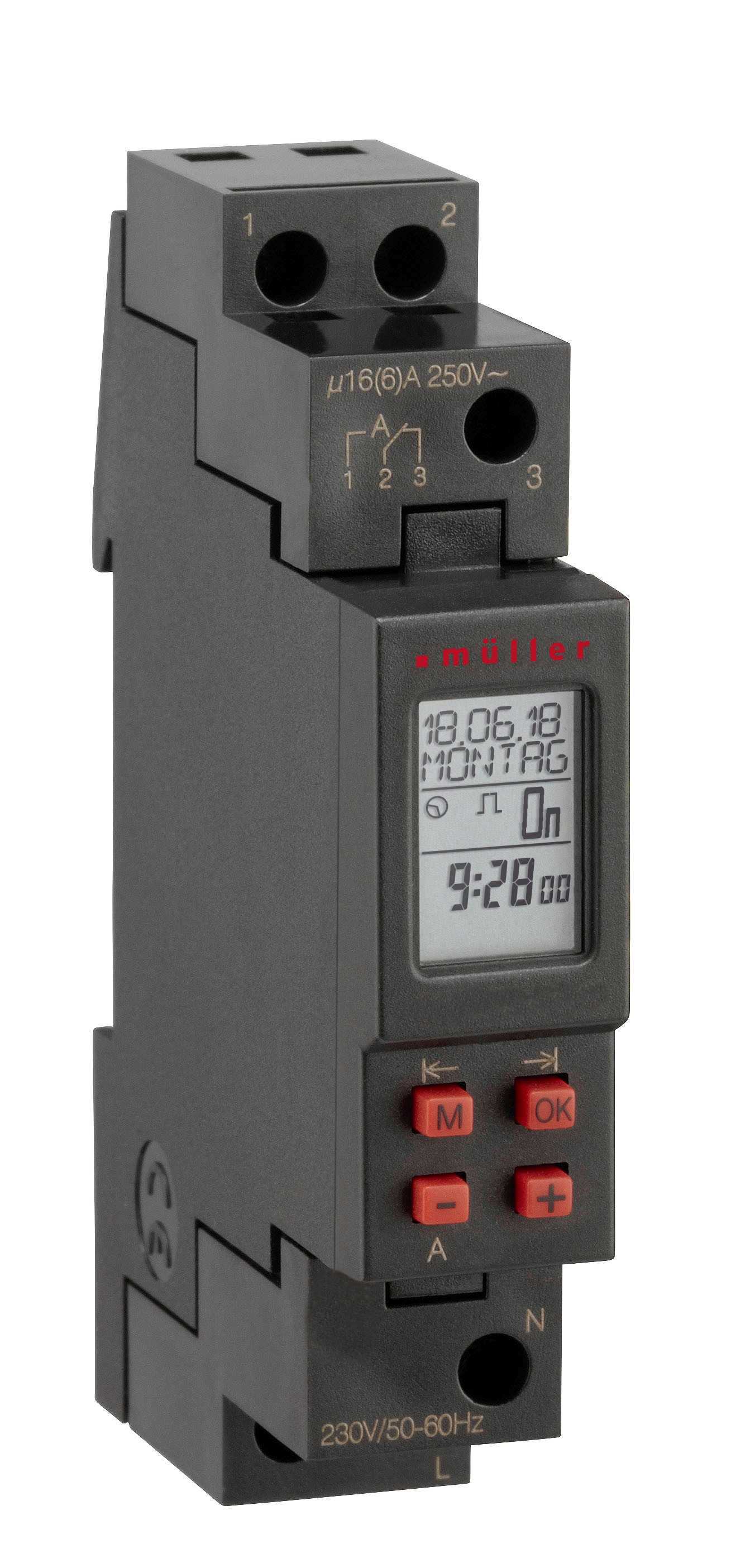

müller SC 08.11 pro - paladin 172 110 pro

Overview

  • Time switch digital weekly
  • DIN-rail mounting 17,5 mm
  • 1 channel
  • Daily and weekly program
  • 46 memory locations
  • Minimum interval 1 min
  • Switching capacity 16 A
  • Permanent by date / holiday function
  • Manual permanent mode
  • Manual override
  • Automatic sorting of switching times on readout
  • Unrestricted block programming
  • Fully automatic daylight saving time
  • Elapsed time and pulse counter
  • Pulse function
  • Security by PIN-Code
  • PC-programmable

Highlights

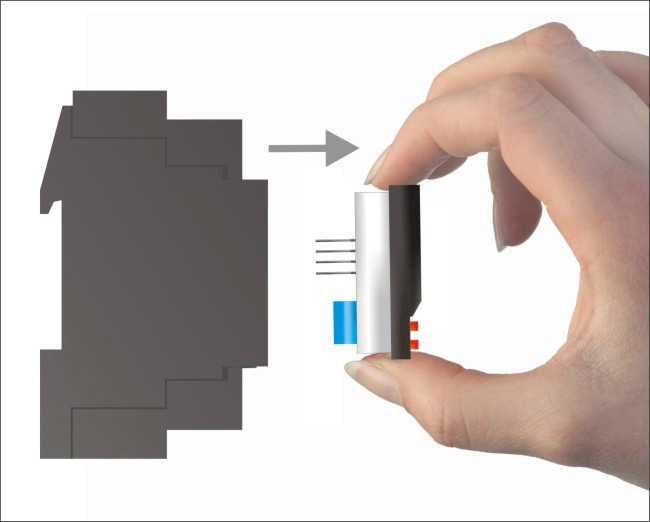

  • Removable programming module
  • Text based menu and self-explanatory symbols
  • Display with two text lines
  • Easy handling. Quick and intuitive programmable time switch
  • Can be programmed with supply disconnected (6 years battery-reserve)
  • Unlimited program security by EEPROM
  • Programmable with Programming package PP 50 pro / PP 60 pro (not included in delivery)

Intended use

  • The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
  • Operate the device in a dry room only!
  • The installation must be in accordance with the instruction manual.
  • The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment

Supply voltage versions

  • see technical data
