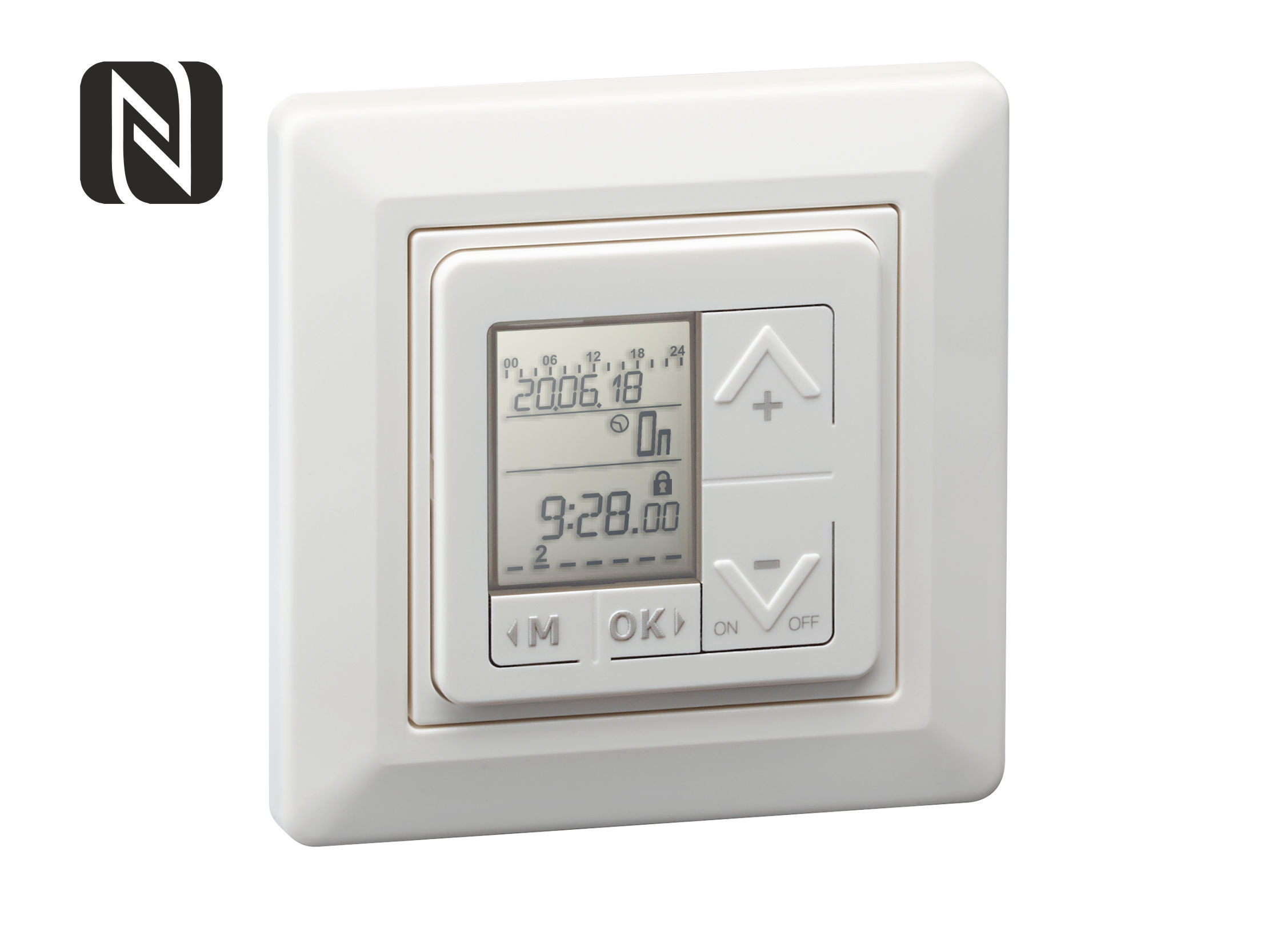

Interruttori orari digitali settimanali
Codice ordinativo
173 110 easy
1 Kanal Version
173 110 easy
1 Kanal Version
paladin 173 110 easy
Overview
- Time switch digital week
- Flush-mounted fitting
- 1 channel
- Daily and weekly program
- Economical night program
- 56 memory locations
- 10 years battery-reserve
- Minimum interval 1 min
- Switching capacity 10 A per channel
- Extra switching times ON, OFF and pulse by date and time
- Permanent by date / holiday function
- Manual permanent mode
- Manual override
- Automatic sorting of switching times on readout
- Unrestricted block programming
- Fully automatic daylight saving time
- Elapsed time and pulse counter
- Security by PIN-Code
- Text based menu
- Easy handling
- Unlimited program security by E2-PROM
- Optimized Quartz accuracy for typical ambient conditions in standard installations
- Illuminated display
- NFC programming (ISO 15693 Standard)
Highlights
- Weekly program
- Complete switching program of the present day at a glance
- Optimized own consumption: only 0.2 W in „standby“ mode
- Large, clear and illuminated display with one text line
- Easy handling
- Quick and intuitive programming
- Can be programmed with supply disconnected
- Unlimited program security by E2 -PROM
- Programmable with smartphone via NFC (free Save'n carry App)
- Ideal for modern lamps [LED, CFL, etc.]
Intended use
- The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
- Operate the device in a dry room only!
- The installation must be in accordance with the instruction manual.
- The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment.
Supply voltage versions
- 230 V, 50-60 Hz
- Other supply voltage versions on request
