Temporizzatori / Relè digitali multifunzione

Codice ordinativo

Logo Hugo Müller
TC 14.21
9:59:59 hh:mm:ss
TC 24.21
99:59:59 hh:mm:ss

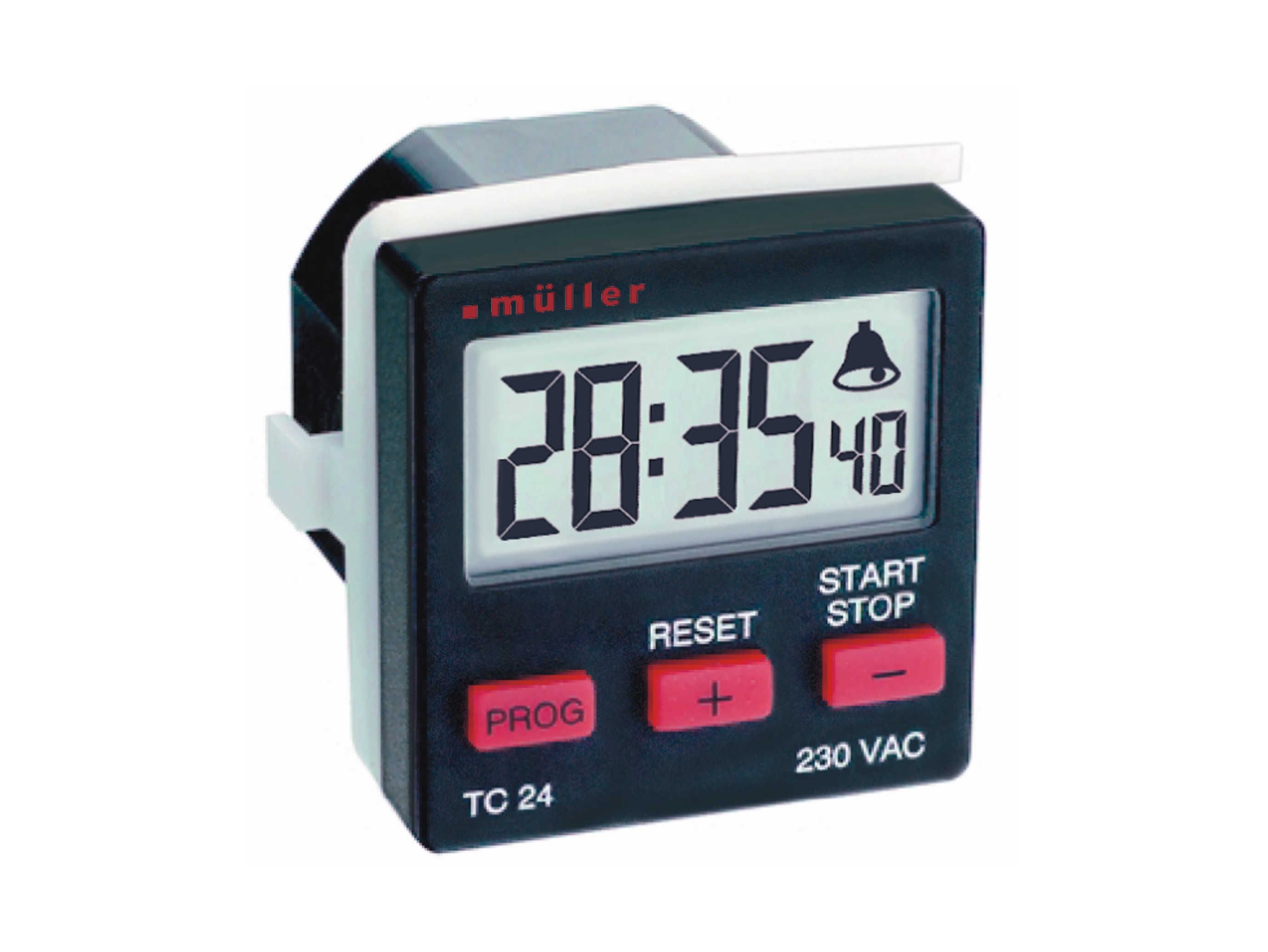

müller TC x4.21

Overview

  • Countdown timer
  • Max. time: TC 14.21: 09:59:59 hh:mm:ss
  • Max. time: TC 24.21: 99:59:59 hh:mm:ss
  • 1 change-over relay
  • Repeatability accuracy 100%
  • Time set accuracy 1 sec.
  • Output rating 8 A / 230 V AC
  • Inputs for start and stop (230 V AC)
  • Start and stop button
  • Optical and acoustic signal on completion of time
  • Easy to program and operate
  • Unlimited data security by E2-PROM
  • Special functions / models on request

Intended use

  • The device fits for the particular use of the following tasks: sequence control: an application is activated or deactivated in a device or plant for a certain time.
  • Operate the device in a dry room only!

Supply voltage versions

  • 230 V 50-60 Hz
  • 115 V 50-60 Hz
  • 24 V ACDC (only TC 24.21)
